Product Description

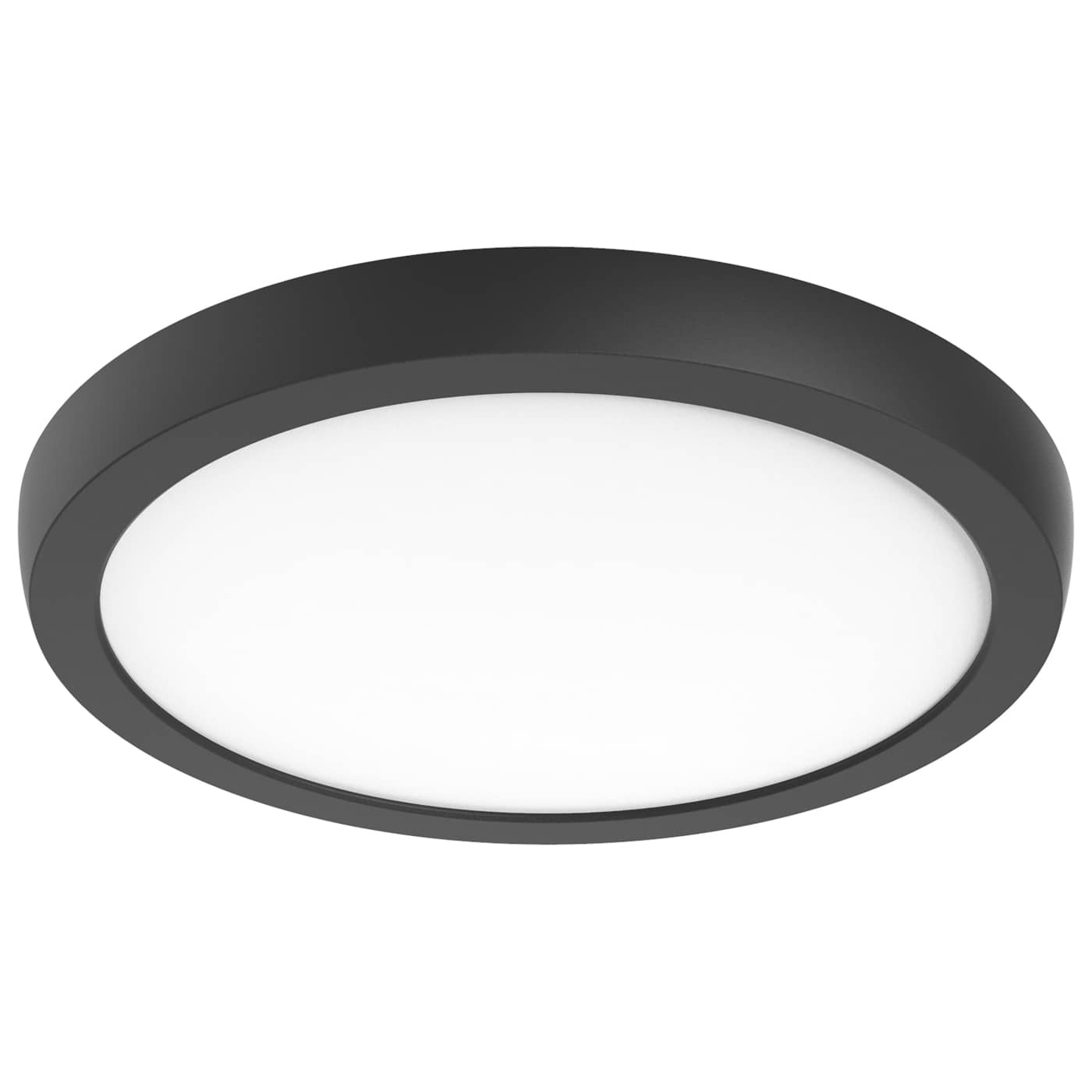

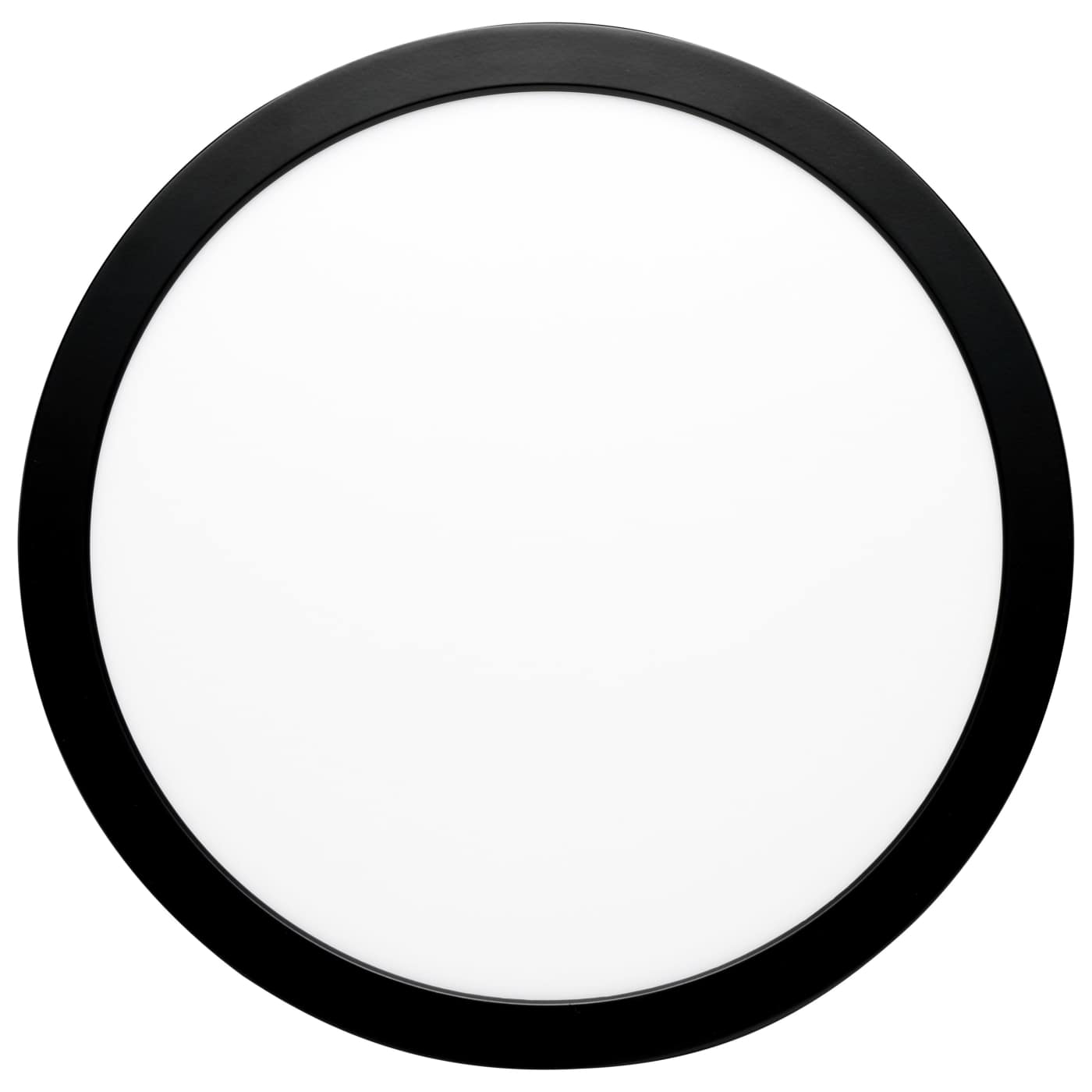

The SATCO 62-1786 Blink Pro Plus is a 19.5 Watt, 12-inch round surface mount LED fixture designed for residential and commercial ceiling lighting. This CCT selectable fixture offers adjustable color temperatures from 2700K to 5000K and a high 90+ CRI for accurate color rendering. Operating at 120V/277V, it provides energy-efficient illumination suitable for utility areas, kitchens, and hallways. It features built-in 2.5KV surge protection and is dimmable.
- CCT Selectable for adjustable color temperature options.
- Dimmable with 120V phase cut dimming functionality.
- High CRI 90+ ensures accurate and vibrant color rendering.
Product Highlights
Built-in 2.5KV surge protection ensures durability and reliability for this LED surface mount.
Product Information
Standard Information
-
Brand: SATCO
-
Manufacturer Part Number: 62-1786
-
Country of Origin: Thailand
Technical Specifications
-
Bulb Included: Integrated
-

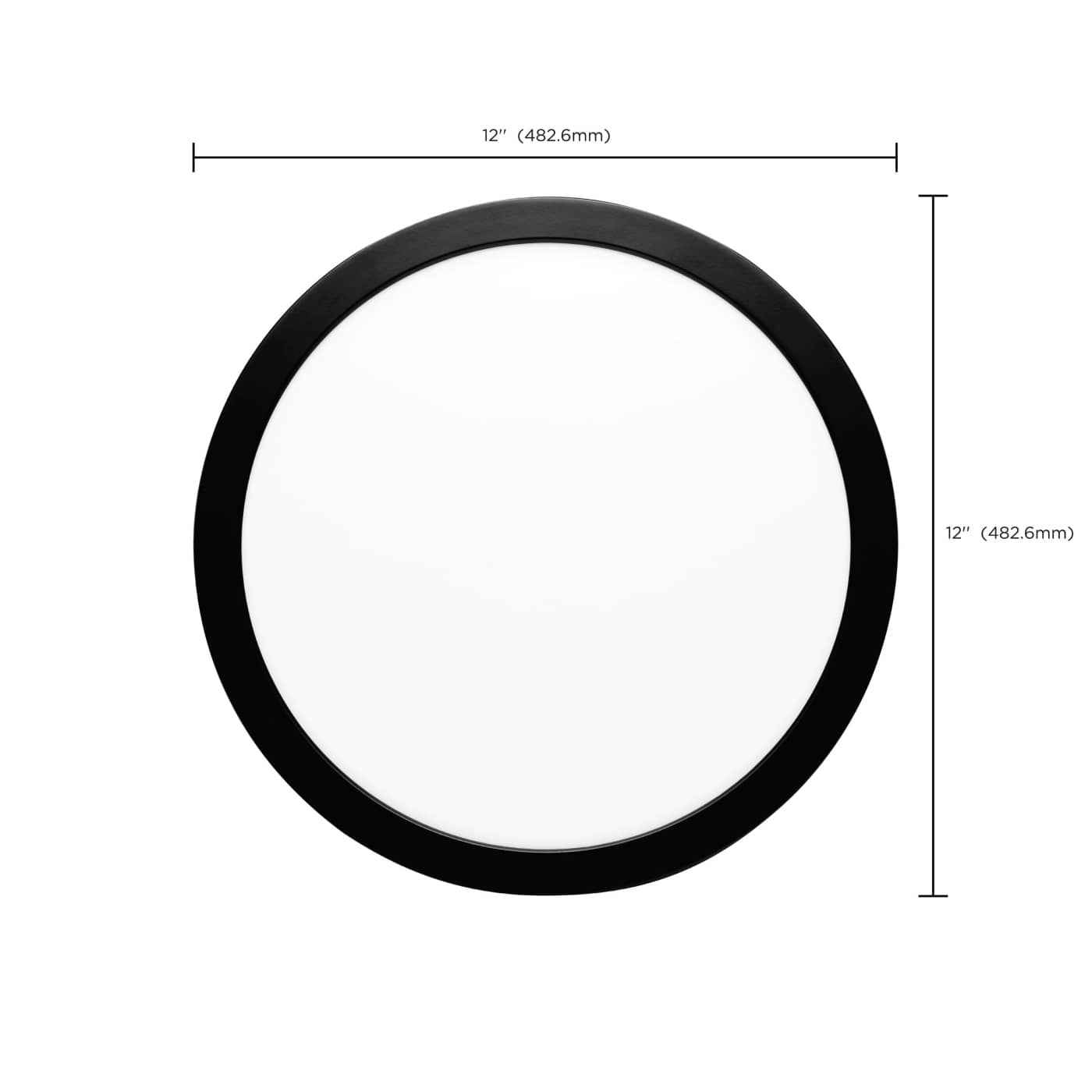

Diameter: 12.0 inches
-
Material: Die-cast Aluminum
-
Fixture Type: Surface Mount
-
Surge Protection: 2.5KV
-
Total Harmonic Distortion: <20%
-
CCT Selectable: Yes
-
Wattage Selectable: No
-
UGR: 22.1
-
Hi-Pot Test: DC-1550V
-
Edge-lit: Yes
-
Amperage: 0.163/0.070A
-
Lens Finish: Frost
-
Lens Material: Poly methyl methacrylate (PMMA)
-
Power Factor: 0.9
-
Location Use: Indoor
-
Technology: LED
-
Incandescent Equivalent: 75W
-
Color Temperature: 2700K/3000K/3500K/4000K/5000K
-
Dimmable: Yes
-
Rated Hours: 50000
-
Beam Angle: 110 degrees
-
CRI: 90+
-
Dimming Type: 120V Phase Cut
-
Operating Frequency: 60Hz
-
Operating Temperature: -20C to +40C (-4F to +104F)
-
Lumens: 1350-1420
-
Input Voltage: 120V/277V
-
Wattage: 19.5W
-
Lamp Base: Integrated
-
Lamp Type: Integrated LED
-
Fixture Shape: Round
-

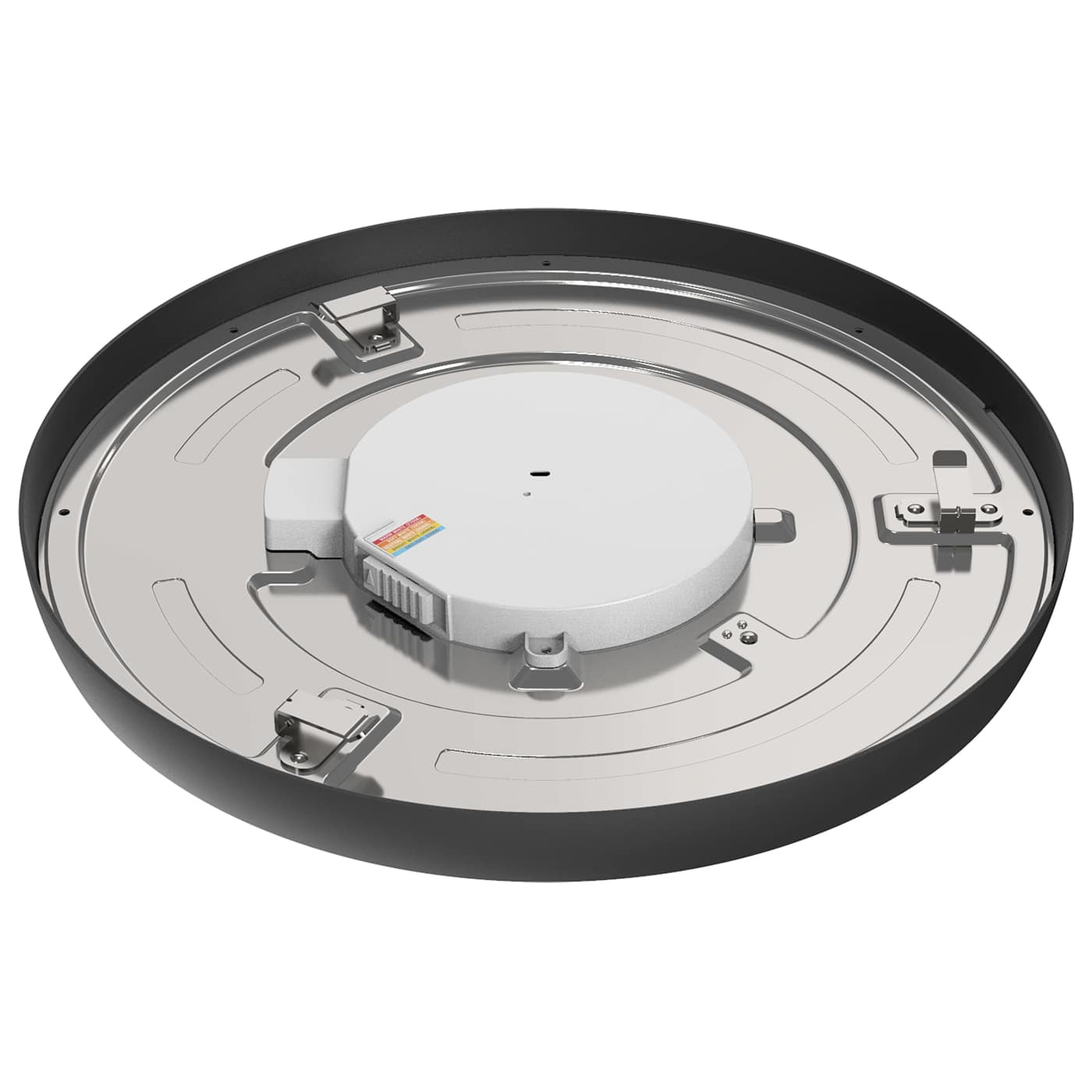

Installation Notes: Compatible with 3" & 4" J-box and pancake J-box
-
California Prop 65 Warning: Lead
-
FCC Compliant: Yes
-
Location Rating: Damp
-
RoHS Compliant: Yes
-
Safety Listing: cETLus Listed
-
California T24 Listed: Yes
-
DLC Approved: No
-
Energy Star Certified: No
-
Title 20: Exempt
-
T24/JA8 Compliant: Yes
-
Flicker Free: No
-
Product Category: Close-to-Ceiling - Surface Mount Panel
-
Height: 1.06 inches
-
Finish: Black
-
Country of Origin: Thailand
