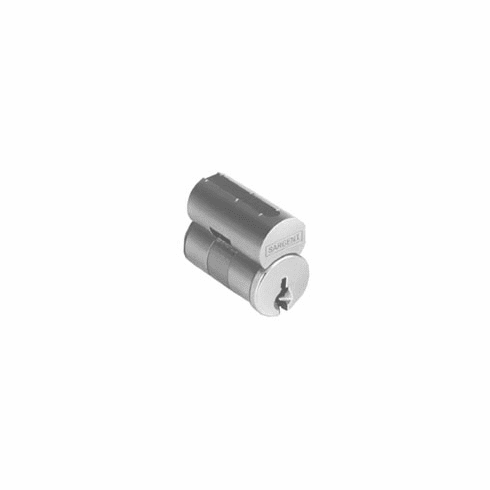

Sargent 6300-HE-15 large format interchangeable core He keyway (6-pin)

Product Description

Sargent 6300-HE-15 is a large format interchangeable (LFIC) removable core cylinder for Sargent LFIC applications. The 6-pin core uses an HE keyway and is supplied with two change keys. The removable LFIC design permits core changes without removing the lock from the door and is suitable for use with exit devices, mortise locks, bored locks, and padlocks; a control key releases the locking cam and is ordered separately.

• Large format interchangeable (LFIC) removable core allows quick cylinder changes without removing the lock; compatible with exit devices, mortise locks, bored locks, and padlocks

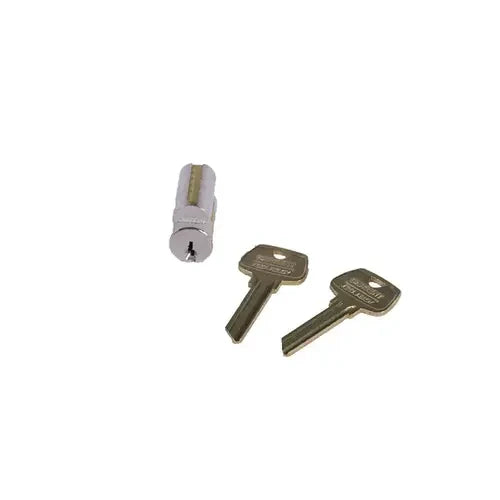

• 6-pin HE keyway configuration supplied with two change keys
• Satin nickel (US15) finish; special control key releases locking cam for immediate core removal (control key ordered separately)

Product Highlights

6-pin LFIC removable core with HE keyway; includes two change keys; satin nickel finish; compatible with Sargent LFIC hardware

Product Information

Standard Information

• Brand: SARGENT
• Manufacturer Part Number: 6300-HE-15
• Country of Origin: USA
