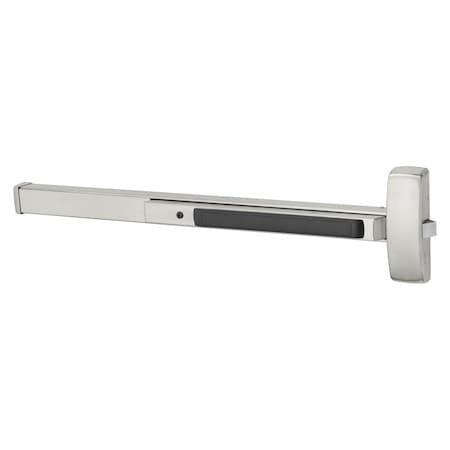

SARGENT Sargent 12-8810F 32D Fire Rated Rim Exit Device 36 inches Exit Only
SARGENT Sargent 12-8810F 32D Fire Rated Rim Exit Device 36 inches Exit Only

Sargent 12-8810F 32D Fire Rated Rim Exit Device 36 inches Exit Only

Brand: SARGENT
SKU: 12-8810F 32D
Availability: In Stock

Ships same day if ordered by 12 pm
$1,643.94
$1,643.94
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Sargent 12-8810F 32D is a fire-rated rim exit device (exit only) designed for 36-inch doors. It is ANSI/BHMA A156.3 Grade 1 hardware listed for fire and panic applications and supplied less dogging for fire-rated installations. The non-handed unit fits 33- to 36-inch doors with a minimum 1-3/4-inch thickness and includes a 3/4-inch stainless steel latchbolt and 649 strike for panic and fire-rated openings.

  • ANSI/BHMA A156.3 Grade 1 fire-rated rim exit device with UL10C and UL305 listings
  • Less-rim, exit-only configuration for 33–36 inch doors; non-handed design
  • 3/4 inch (19 mm) stainless steel latchbolt with 649 strike supplied; minimum 1-3/4 inch door thickness

Product Highlights

Grade 1 fire-rated rim exit device for 33–36" doors; less-rim exit-only configuration; 3/4" stainless latchbolt and 649 strike; non-handed; US32D satin stainless finish.

Product Information

Standard Information

  • Brand: SARGENT
  • Manufacturer Part Number: 12-8810F 32D
  • Country of Origin: United States
Technical Specifications
Brand
Sargent
Model/MPN
12-8810F 32D
Product Type
Rim exit device (fire rated)
Series
80 Series
Trim Function
No trim - Exit only
Configuration
Less rim (no rim latch)
Grade / Standard
ANSI/BHMA A156.3 - Grade 1
UL Listings
UL10C (Fire) and UL305 (Panic)
Door Size / Device Width
36" (Size F; fits 33" to 36" doors)
Handing
Non-handed
Door Thickness
1-3/4" (44 mm) minimum
Minimum Stile Width
4-1/2" (114 mm) minimum
Latchbolt
Stainless steel, 3/4" (19 mm) throw
Strike
649 strike supplied standard for panic and fire-rated openings
Mounting
Supplied with wood and machine screws; available with through-bolts and mortise nuts
Chassis
Nonferrous alloy (panic) / Ferrous alloy (fire rated)
Rails
Roll formed stainless steel, brass, or bronze with ANSI/BHMA finishes
Finish
US32D Satin Stainless Steel
Available Finishes
32D, 10, 4, BSP, 3, 10B, 32 (various stainless, bronze, brass, and powder coat options)
Sales Category
Exit device, rim
UNSPSC Code
46171500
Part Number / SKU
CS143304
