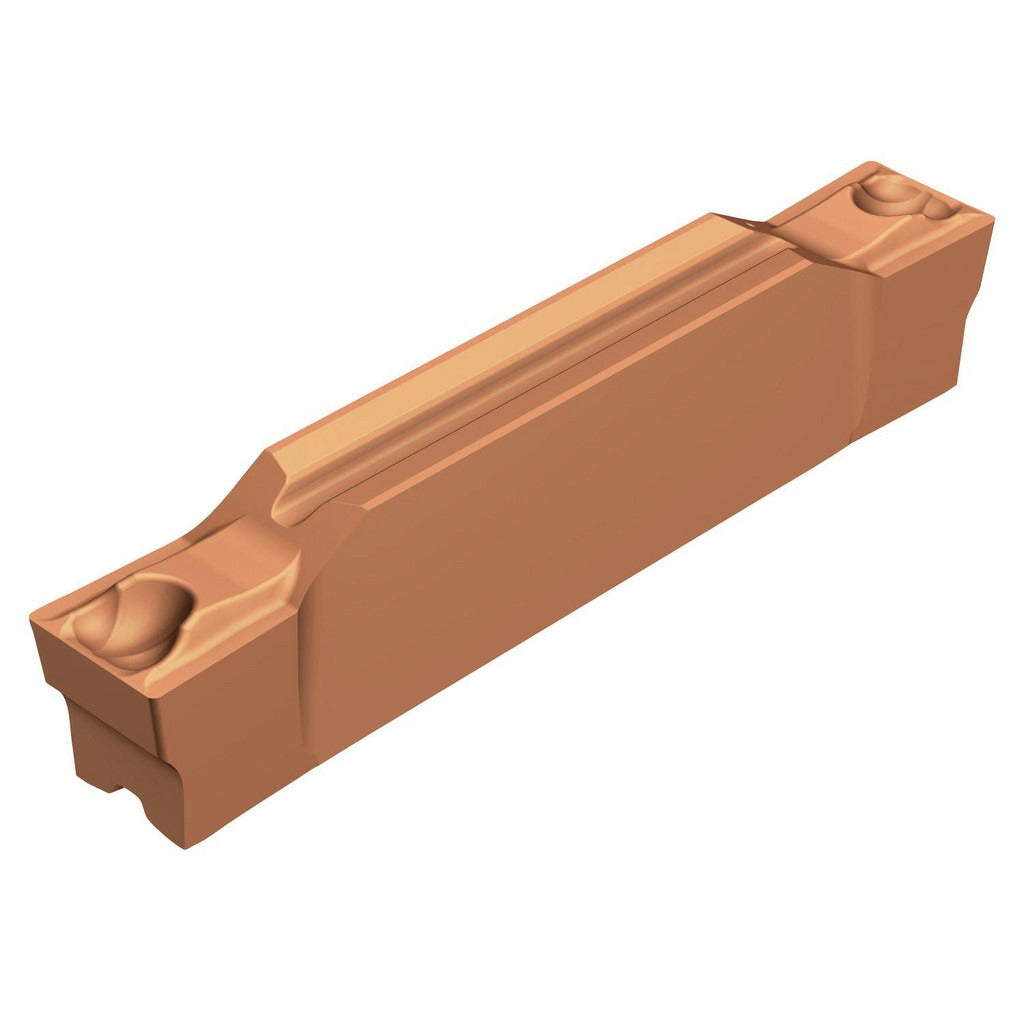

Sandvik Coromant 8194241 Grooving Insert Carbide Tialn

Product Description

The SANDVIK COROMANT 8194241 is a carbide grooving insert from the CoroCut 2 series, designed for parting and grooving operations on CNC lathes and turning centers. The insert carries a C2I style designation with an insert size code of D2 and features a neutral hand orientation. It delivers a cutting width of 1.50 mm (0.0591 inches) and a maximum depth of cut of 0.86 mm (0.0339 inches). The PVD-applied TiAlN/TiAlSiN/TiSiN multilayer coating is optimized for wear resistance and thermal stability. With two cutting edges and a GF chip breaker geometry, this insert is suited for controlled-depth grooving and face grooving tasks performed by machinists and CNC turning specialists.

This insert is configured for face grooving applications and is compatible with CoroCut 2 parting and grooving tool holders. Primary workpiece material is steel (ISO material code P), with secondary suitability for stainless steel (ISO material code M). The neutral rake and 0-degree lead angle support consistent chip control in precision grooving operations across both material groups. ANSI and ISO catalog designations are C2I-D2N-0150-0001-GF1225. This insert is sold individually but must be ordered in multiples of 5.

Key Features

• CoroCut 2 series C2I style insert with clamp-style holding for secure seating in compatible tool holders
• PVD-applied TiAlN/TiAlSiN/TiSiN multilayer coating for extended tool life on steel and stainless steel
• GF chip breaker geometry supports controlled chip formation in precision face grooving
• Two cutting edges per insert for improved economy per replacement cycle
• Neutral rake and 0-degree lead angle maintain dimensional accuracy at shallow depth of cut (0.86 mm maximum)
• Manufacturer grade 1225 carbide substrate engineered for P and M ISO workpiece material groups

Compatibility

Designed for use with CoroCut 2 parting and grooving tool holders. ANSI and ISO code C2I-D2N-0150-0001-GF1225 identifies the exact holder interface and geometry required.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be fully stopped and the tool holder secured in the turret before seating or removing inserts. Use the appropriate torque wrench and clamping screw per the tool holder manufacturer specifications to avoid insert rocking or premature edge failure. Do not exceed the rated maximum depth of cut for this insert geometry.
