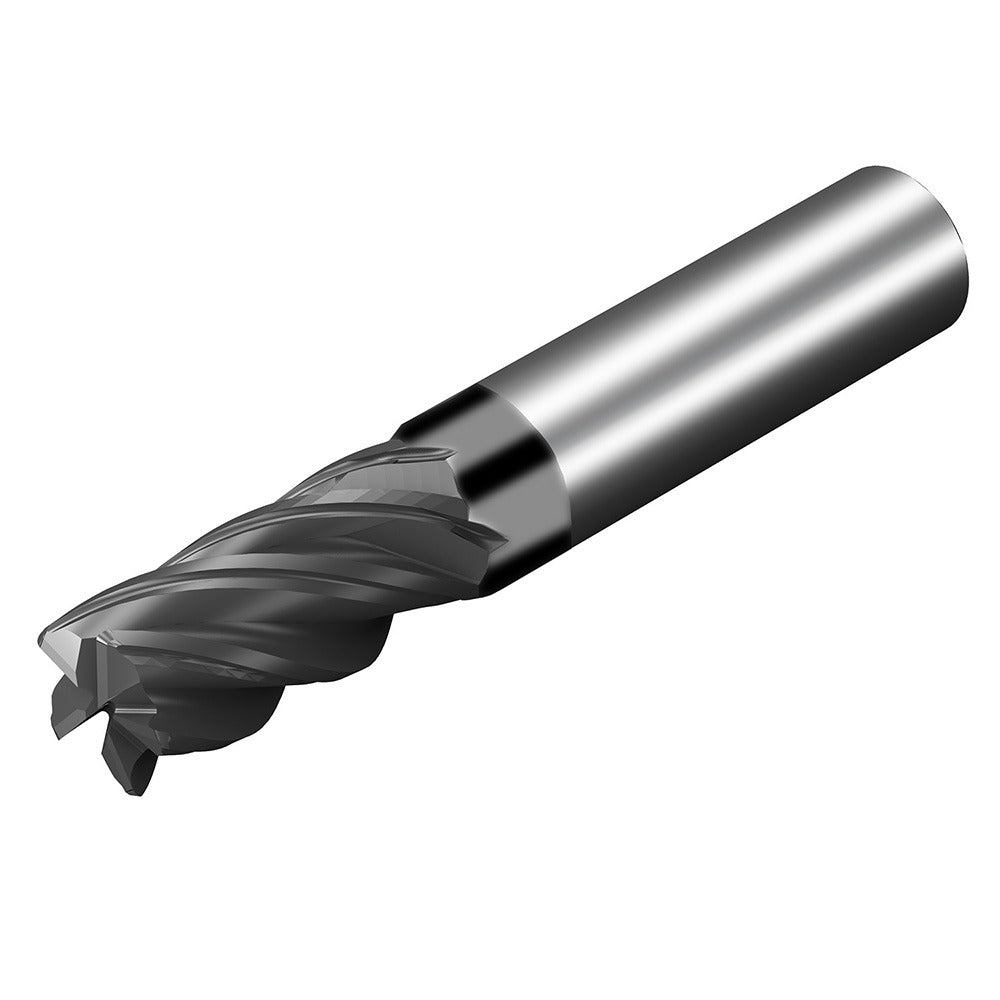

Sandvik Coromant 8036854 Square End Mill 5/8 in 5 Flute

Product Description

The SANDVIK COROMANT 8036854 is a solid carbide square end mill designed for high-performance milling in demanding materials. Built on the CoroMill Dura series platform, it features a 5/8 inch (0.6250 inch) mill diameter, five flutes, and a variable helix and variable index geometry that reduces chatter and improves surface finish in aggressive cutting conditions. The AlTiN coating provides thermal resistance and extended tool life in dry or semi-dry cutting applications. This single-end tool is right-hand cutting with right-hand flute direction and is center-cutting capable, making it suitable for plunge entries and contour operations in steel, stainless, and hardened materials.

This end mill is suited for aerospace, die and mold, and general metalworking applications where long reach and consistent performance in difficult-to-machine alloys are required. The 2-1/4 inch length of cut, 5 inch overall length, and 5/8 inch shank diameter make it appropriate for deeper pocketing and slotting operations on CNC vertical machining centers and milling machines. It is installed and managed by machinists, tooling engineers, and CNC operators working in production and job-shop environments.

Key Features

• Variable helix and variable index geometry reduces vibration and chatter during heavy cuts
• AlTiN coating delivers thermal and oxidation resistance for extended tool life in hard materials
• Five-flute design increases feed rate capability compared to standard four-flute end mills
• Center-cutting capable — supports direct plunge entry without pre-drilling
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• Solid carbide construction provides rigidity and dimensional stability in tight-tolerance work

Compatibility

Designed as an OEM CoroMill Dura series solid carbide end mill with a 5/8 inch straight shank, compatible with standard ER and side-lock collet systems and milling chucks accepting 5/8 inch shank tooling.

Installation Notes

Installation is performed by qualified machinists or CNC tooling personnel. Ensure the spindle is fully stopped and the machine is in an E-stop or locked-out state before changing tooling. Seat the shank fully in the collet or chuck and torque the retention hardware to the machine or toolholder manufacturer specification. Verify runout with a dial indicator before initiating a cut, as excessive runout will accelerate edge wear and reduce dimensional accuracy.
