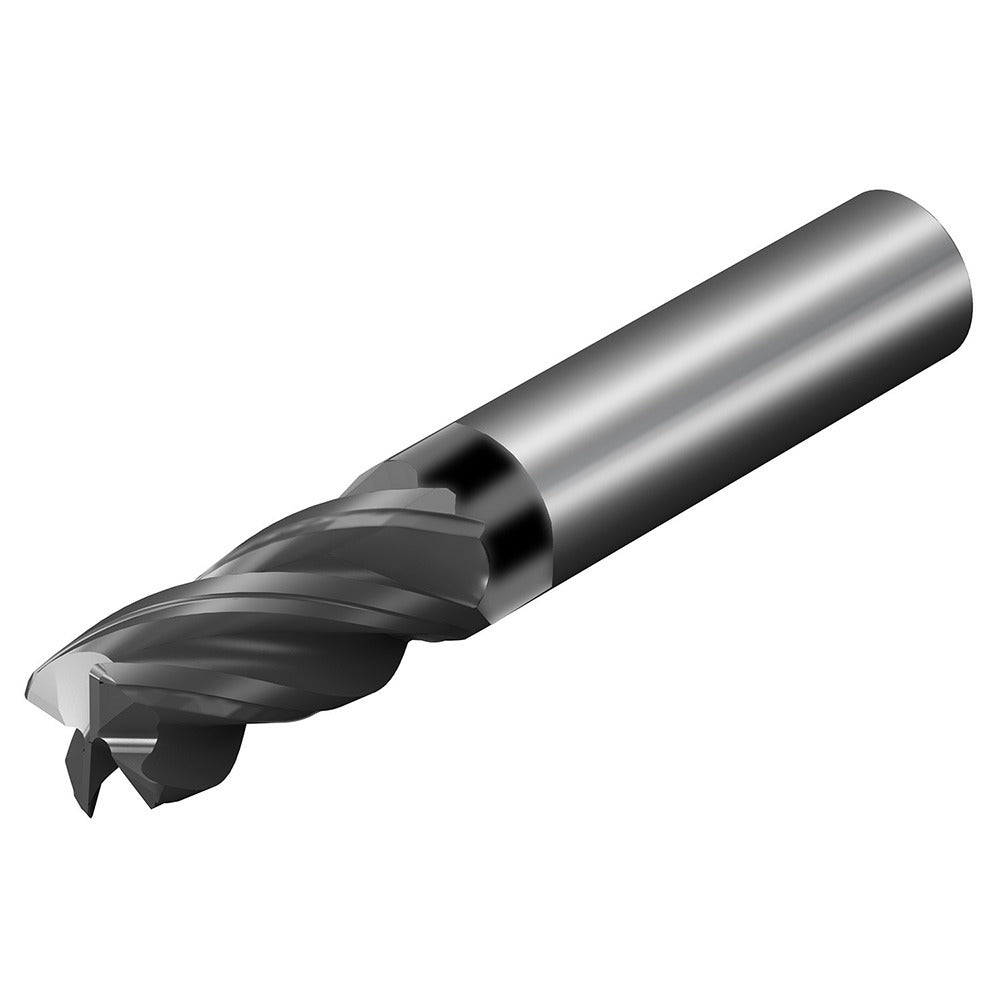

Sandvik Coromant 8036229 Corner Radius End Mill 1/2 in

Product Description

The SANDVIK COROMANT 8036229 is a solid carbide corner radius end mill designed for precision milling in demanding machining environments. Part of the CoroMill Dura series, it features a 1/2 inch diameter with a 0.06 inch corner radius and four flutes with variable helix and variable index geometry. The AlTiN coating provides thermal resistance and extended tool life in hard and abrasive materials. At 3 inches overall length with a 1.75 inch length of cut, this single-end, centercutting tool is suited for both slotting and profiling operations. It is installed and operated by machinists and CNC programmers working in precision manufacturing and job shop environments.

This end mill is used in milling operations on ferrous metals, hardened steels, and high-temperature alloys where corner radius geometry is required to improve edge strength and reduce stress concentration in the workpiece. The right-hand cutting direction and spiral flute design support efficient chip evacuation. The straight cylindrical shank accommodates standard end mill holders and collet chucks commonly found on vertical and horizontal machining centers. Material grade X1BH is specified for this tool, indicating suitability for challenging workpiece materials.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard materials
• AlTiN coating for high-temperature performance and extended tool life
• Variable helix and variable index geometry reduces vibration and chatter during cuts
• 0.06 inch corner radius strengthens cutting edges and reduces workpiece stress risers
• Centercutting design allows plunge milling and ramp entry operations
• Four-flute configuration balances chip evacuation with surface finish quality

Compatibility

Designed as an OEM-style replacement and production cutting tool for use in standard 1/2 inch end mill holders, collet chucks, and shrink-fit tooling systems on CNC vertical and horizontal machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the straight cylindrical shank fully into the holder and torque the retention mechanism per the toolholder manufacturer specifications. Verify runout with a dial indicator before beginning a production run.
