Sandvik Coromant 8003592 Vnmg Turning Insert S205

Product Description

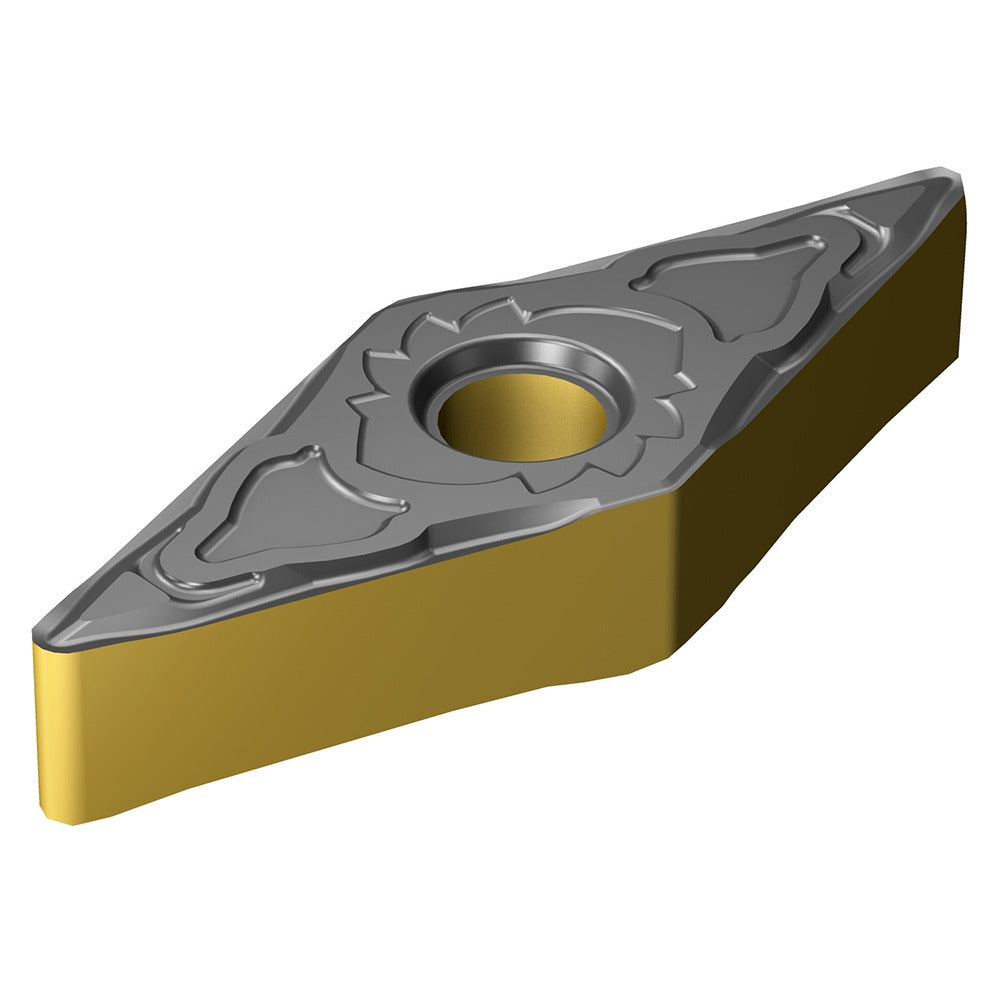

The SANDVIK COROMANT 8003592 is a solid carbide turning insert designed for precision metal cutting in CNC lathe and turning center applications. Designated VNMG332-SF in the T-Max P series, this insert features a trigon (V-shape) geometry with a 35-degree included angle and a neutral hand orientation. The 3/8 inch inscribed circle and 0.0313 inch corner radius suit medium to finish turning passes. A CVD-applied multilayer coating of Al2O3, TiCN, and TiN provides wear resistance and thermal protection at the cutting edge. Manufacturer grade S205 targets difficult-to-machine materials classified under ISO material group S, including heat-resistant superalloys and titanium alloys. The SF chip breaker geometry supports controlled chip formation in these demanding materials.

This insert is used in external turning operations on CNC lathes and turning centers where tight tolerances and surface finish are required on superalloys, titanium, and similar high-temperature alloys. The VNMG geometry seats in standard V-pocket toolholders using clamp or screw holding methods. ISO code VNMG 16 04 08-SF S205 and industry standard number VNMG 16 04 08-SF S205 allow cross-referencing with compatible toolholder catalogs. Applications typically include aerospace component machining, power generation parts, and other jobs requiring reliable tool life in ISO S-category workpiece materials.

Key Features

• CVD multilayer coating: Al2O3, TiCN, and TiN for thermal and abrasion resistance
• SF chip breaker geometry for controlled chip formation on tough materials
• Manufacturer grade S205 optimized for ISO S-group workpiece materials (superalloys, titanium)
• Neutral hand insert fits left- and right-hand toolholder configurations
• Clamp and screw holding compatibility with standard VNMG V-pocket toolholders
• 3/8 inch inscribed circle with 0.0313 inch corner radius for medium to finish turning

Compatibility

Designed for use in standard VNMG V-pocket toolholders that accept clamp or screw insert holding. ISO code VNMG 16 04 08-SF S205 can be used to verify toolholder compatibility in manufacturer catalogs. No additional specific model compatibility data was provided in the product data.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or replacing the insert. Seat the insert firmly in the toolholder pocket and verify clamp or screw torque per the toolholder manufacturer specification before resuming cutting. Inspect the insert seating pocket for chips or debris that could cause improper seating or edge damage.
