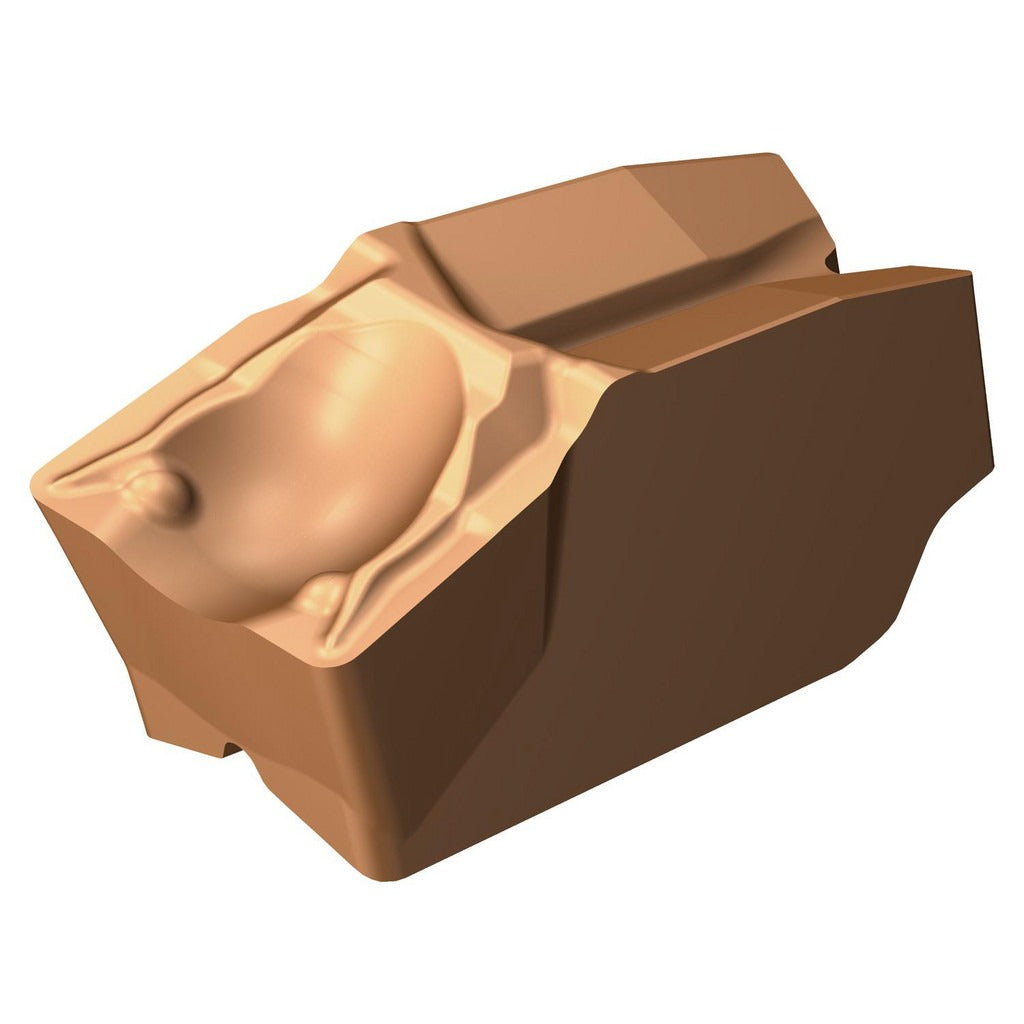

Sandvik Coromant 7582653 Grooving Insert Corocut Qf

Product Description

The SANDVIK COROMANT 7582653 is a solid carbide grooving insert in the CoroCut QF series, designed for precision grooving operations on CNC lathes and turning centers. Carrying grade 1125 with a PVD-applied TiAlN coating and a 7-degree rake angle, this insert delivers consistent edge performance in grooving and parting applications. The TF chip breaker geometry controls chip formation across a range of cut depths. The insert has a 6.00 mm cutting width, a maximum depth of cut of 3.00 mm, and a 0.40 mm corner radius. It is installed via a clamp holding method and fits insert seat size K. At 0.5 pounds packaged, it ships as a single-unit quantity.

This insert is suited for grooving steel and stainless steel workpieces in both production and job-shop turning environments. The primary workpiece material rating is P-code steel, with a secondary rating of M-code stainless steel, making it a practical choice for shops that run mixed material work on standard CNC turning equipment. It follows ISO code QFT-K-0600-04-TF 1125 and is classified under UNSPSC 23242105. Machinists and CNC operators installing CoroCut QF tooling will find this a direct-fit replacement insert for the designated seat size and series.

Key Features

• Solid carbide construction with PVD TiAlN coating for wear resistance in steel and stainless steel cutting
• 6.00 mm cutting width with a maximum depth of cut of 3.00 mm
• TF chip breaker geometry for controlled chip evacuation during grooving
• 7-degree rake angle suits P-code and M-code workpiece materials
• 0.40 mm corner radius (0.0157 inches) for defined groove geometry
• Clamp-held, insert seat size K, neutral hand orientation

Compatibility

Designed for use in CoroCut QF series toolholders accepting insert seat size K and insert size 0600. ISO code QFT-K-0600-04-TF 1125 identifies the exact seat and geometry fit. Confirm toolholder seat specification before installation.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Before changing inserts, shut down the spindle and engage all machine safety locks per shop lockout/tagout procedures. Use the appropriate clamp screw torque driver as specified by the toolholder manufacturer — do not over-torque the clamp, as this can fracture the insert or damage the seat. Inspect the insert seat and clamp for wear or debris before seating the new insert.
