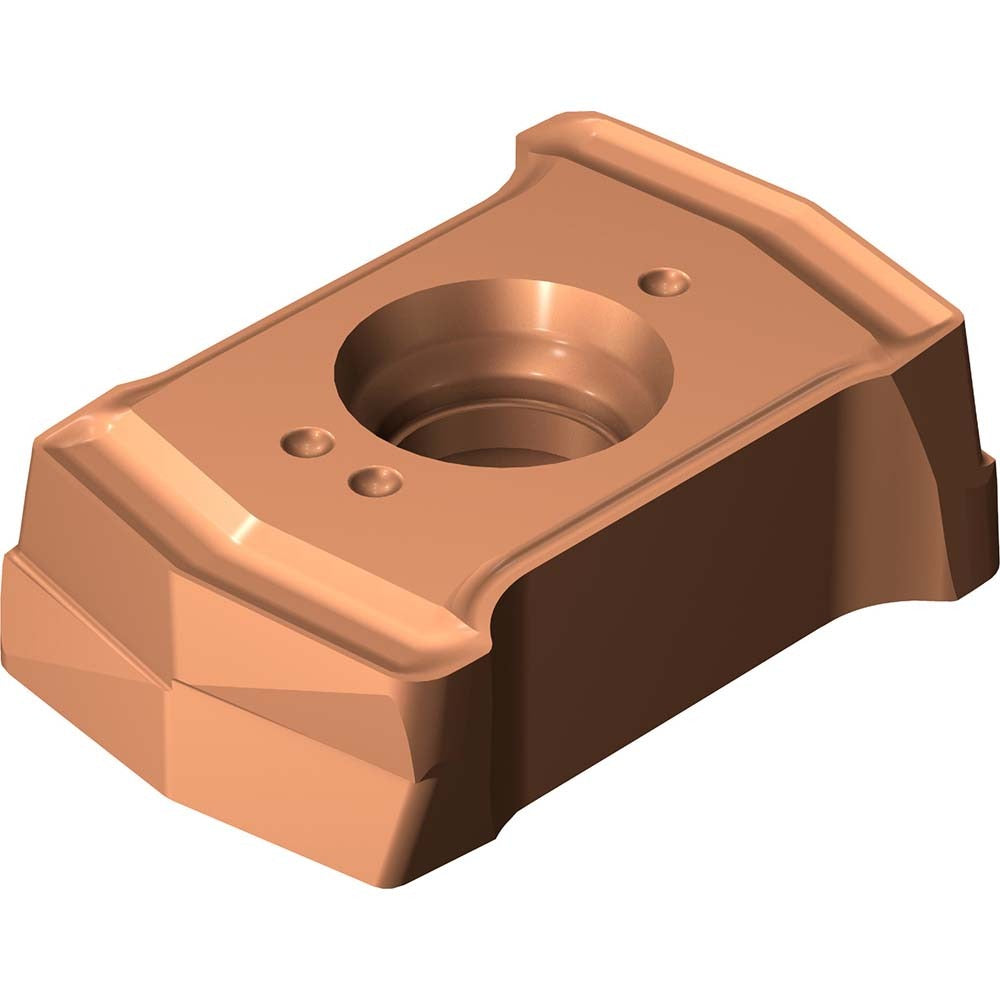

Sandvik Coromant 7549971 Indexable Drill Insert DS20L5W

Product Description

The SANDVIK COROMANT 7549971 is a solid carbide indexable drill insert designed for use with the CoroDrill DS20 drilling system. It carries the DS20L5W insert style with a 2044 manufacturer grade and features a PVD-applied TiAlN and AlCr2O3 dual-layer coating for wear resistance at elevated cutting temperatures. The irregular insert shape and L5W chipbreaker geometry work together to control chip formation in demanding drilling applications. With a corner radius of 0.8 mm, this insert suits precision hole-making operations where controlled chip evacuation and edge integrity are critical. It is a right-hand cutting insert intended for professional machining environments.

This insert is designed for use in CoroDrill DS20 indexable drill bodies, size 0608, in both CNC turning-center and machining-center applications. It is suited for productive drilling in ferrous materials where PVD-coated carbide inserts deliver consistent tool life. Machinists and toolroom professionals working in production or job-shop environments will find this insert appropriate for mid-range drilling depths requiring reliable chip control. Compatible drill style is DS20, and the insert size designation is 0608.

Key Features

• Solid carbide substrate with PVD TiAlN and AlCr2O3 dual-layer coating for extended wear resistance
• DS20L5W insert style with L5W chipbreaker for controlled chip formation
• 0.8 mm corner radius for edge integrity in precision drilling
• Right-hand cutting orientation, insert size 0608
• Manufacturer grade 2044 optimized for the CoroDrill DS20 platform
• Irregular shape geometry engineered for the DS20 indexable drill body

Compatibility

Designed for use with CoroDrill DS20 indexable drill bodies requiring DS20-style inserts in size 0608. Compatible drill style is DS20 as specified by the manufacturer. Catalog reference number DS20-0608-P-L5W 2044.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist or toolroom technician following the drill body manufacturer torque guidelines for the DS20 platform. Ensure the drill body pocket is clean and free of chips or debris before seating the insert. Always index or replace inserts with the machine fully stopped and locked out per applicable shop safety procedures. Do not exceed the cutting parameters published by the manufacturer for the 2044 grade.
