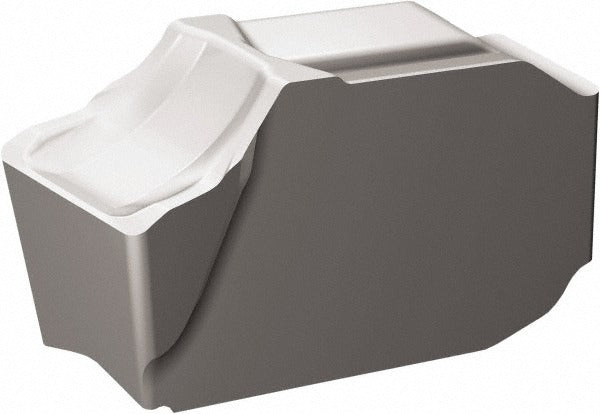

Sandvik Coromant 7101076 Grooving Insert Coromill Qd

Product Description

The SANDVIK COROMANT 7101076 is a solid carbide grooving insert designed for precision groove milling operations. Part of the CoroMill QD series, this insert carries the ISO code QD-NF-0239-020E-PM 1130 and features an AlTiCrN coating applied via PVD process. With a cutting width of 0.0941 inches (2.39 mm) and a cutting height of 0.1220 inches (3.10 mm), it is built for tight-tolerance grooving applications where dimensional consistency matters. The PM chip breaker geometry and 7-degree rake angle support controlled chip formation in a range of workpiece materials. Licensed machinists and CNC operators are the primary installers of this insert type.

This insert is suited for groove milling in both production and job-shop environments where the CoroMill QD system is in use. The neutral hand orientation makes it adaptable across a variety of grooving setups. Insert size designation F and the QD-N insert style align it with compatible CoroMill QD tooling bodies. Typical applications include face grooving, parting, and slot milling on CNC machining centers and turning centers where precision groove profiles are required.

Key Features

• Solid carbide construction with manufacturer grade 1130 for wear resistance and edge stability
• AlTiCrN PVD coating for elevated heat and oxidation resistance during high-speed grooving
• 0.0941 inch (2.39 mm) cutting width for precise, repeatable groove dimensions
• PM chip breaker geometry combined with a 7-degree rake angle for effective chip control
• Neutral hand insert orientation for flexible setup across multiple tooling configurations
• ISO code QD-NF-0239-020E-PM 1130 for straightforward cross-referencing and procurement

Compatibility

Designed for use with SANDVIK COROMANT CoroMill QD series tooling bodies that accept QD-N style inserts with insert size F designation. Confirm tooling body seat geometry and clamping compatibility before ordering.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist following the tooling manufacturer guidelines for the CoroMill QD system. Power down and lock out the machine spindle before changing inserts. Use the correct torque wrench and insert key specified for the clamping screw to avoid seat damage. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
