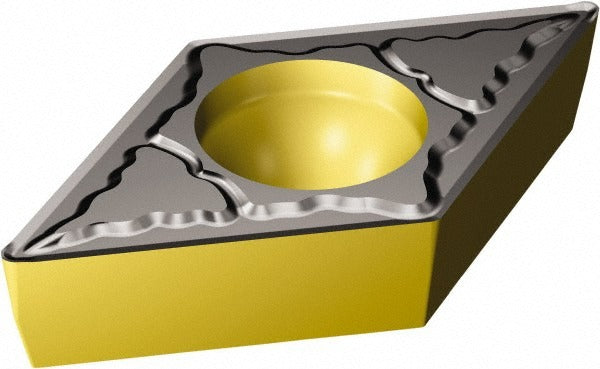

Sandvik Coromant 7080701 Turning Insert DCMT32.51-PM 4335

Product Description

The SANDVIK COROMANT 7080701 is a DCMT-style carbide turning insert engineered for precision metal cutting in CNC and manual turning applications. Carrying ANSI insert code DCMT32.51 and ISO code DCMT 11 T3 04-PM 4335, this insert features a 55-degree diamond (rhombic) shape with a positive side clearance and a neutral hand orientation. The CVD-applied multilayer coating -- TiCN, Al2O3, and TiN -- delivers a balance of wear resistance and toughness suited to steel workpieces. With an inscribed circle of 0.3750 inches and a corner radius of 0.0156 inches, it is part of the CoroTurn 107 series designed for screw-clamped toolholders.

This insert is intended for turning steel workpieces across roughing and medium machining operations. The PM chip breaker geometry supports controlled chip evacuation during moderate to heavy cuts. It is suited for use in production turning environments where consistent tool life and predictable performance on steel (ISO material group P) are required. Licensed machinists and CNC operators working on steel components are the primary installers and users of this insert.

Key Features

• CVD multilayer coating: TiCN, Al2O3, and TiN for wear resistance and toughness on steel
• 55-degree diamond insert shape (DCMT) with positive side clearance for free-cutting geometry
• PM chip breaker supports roughing and medium machining chip control
• 0.3750 inch inscribed circle with 0.0156 inch corner radius for defined edge geometry
• Screw-clamped insert holding method compatible with CoroTurn 107 toolholders
• 2 cutting edges per insert

Compatibility

Designed for use with CoroTurn 107 series screw-clamp toolholders accepting DCMT-style inserts with ANSI size code 32.51 and ISO size code 11T304. Primary workpiece material is steel (ISO code P).

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing or indexing inserts. Use the correct torx or hex key to tighten the clamping screw to the toolholder manufacturer specification -- do not overtighten, as this can fracture the insert. Inspect the insert pocket and seating surface for chips or debris before seating a new insert.
