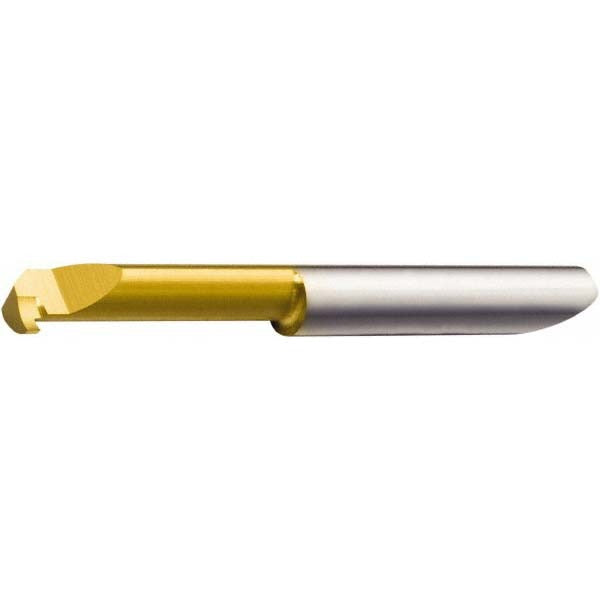

Sandvik Coromant 6765396 Grooving Tool 1.00mm Solid Carbide

Product Description

The SANDVIK COROMANT 6765396 is a solid carbide internal grooving tool designed for right-hand cutting in small-bore applications. With a groove width of 1.00 mm (0.0390 inches) and a minimum hole diameter of 4.70 mm, this tool is built for precision grooving in tight internal bore conditions. The 6.00 mm shank diameter and 52.00 mm overall length provide rigid, compact tool holding. A corner radius of 0.50 mm contributes to clean groove geometry and controlled chip formation. This type of tooling is installed and operated by machinists and CNC turning center technicians working on small-diameter internal features.

This grooving tool is suited for internal grooving operations on CNC lathes and turning centers where bore access is restricted. The 4.70 mm minimum hole diameter makes it applicable for small internal grooves in precision components such as hydraulic fittings, valve bodies, and bore-sealed assemblies. Maximum hole depth reaches 27.00 mm (1.0600 inches), supporting moderate-depth groove passes in a single tool setup. The solid carbide construction supports use in a range of workpiece materials where rigidity and wear resistance are critical to maintaining groove tolerance.

Key Features

• Solid carbide construction for rigidity and extended tool life in internal grooving
• Right-hand cutting direction for standard CNC lathe and turning center setups
• 1.00 mm groove width with 0.50 mm corner radius for precise groove geometry
• 4.70 mm minimum hole diameter enables use in small-bore applications
• 27.00 mm maximum hole depth supports moderate-depth internal groove passes
• 6.00 mm shank diameter and 52.00 mm overall length for compact, rigid tool holding

Compatibility

Designed as an OEM-style internal grooving tool for use in CNC lathes and turning centers accepting a 6.00 mm shank diameter boring bar or toolholder system.

Installation Notes

This tool is installed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and the CNC program is in a safe state before changing or indexing tooling. Secure the shank firmly in the appropriate 6.00 mm bore toolholder to the toolholder manufacturer's specified clamping requirements. Verify correct tool offset and groove width entry in the CNC control before beginning a cut.
