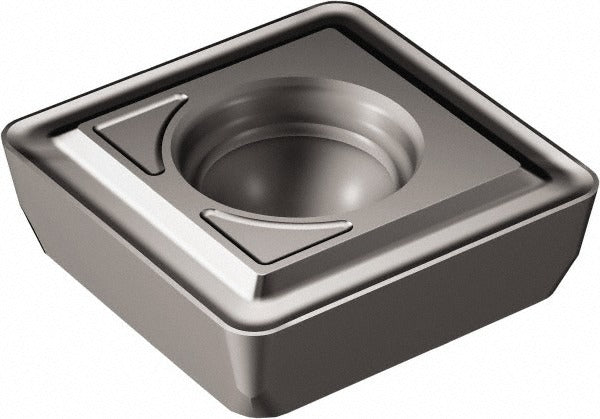

Sandvik Coromant 6626839 Indexable Drill Insert 880LM

Product Description

The SANDVIK COROMANT 6626839 is a solid carbide indexable drill insert designed for use with compatible 880-series indexable drills. This insert features an LM chipbreaker geometry and a 4324 manufacturer grade coating — a TiCN plus Al2O3 multilayer finish applied via a CWD coating process — providing wear resistance and thermal stability during drilling operations. The inscribed circle measures 10.65 mm (0.4193 inches) with a square shape, a corner radius of 0.80 mm (0.0315 inches), and a thickness of 0.1378 inches. Right-hand cutting direction is standard. It is sold individually with a minimum order quantity of 10 units.

This insert is suited for industrial metal-cutting applications where precise hole-making is required. The 880LM insert style is commonly used in production drilling environments — including aerospace, automotive, and general machining shops — where controlled chip formation and consistent tool life are priorities. The solid carbide substrate combined with the TiCN and Al2O3 coating makes it appropriate for drilling steel, cast iron, and similar ferrous workpiece materials. Installation is handled by CNC machinists and toolroom technicians.

Key Features

• Solid carbide substrate with TiCN and Al2O3 multilayer coating via CWD process for extended wear resistance
• LM chipbreaker geometry for controlled chip evacuation during drilling
• Square insert shape with 10.65 mm inscribed circle and 0.80 mm corner radius
• Right-hand cutting direction; Insert Size 06P
• Hole diameter of 4.00 mm (0.1575 inches) for secure clamping in compatible toolholders
• Minimum order quantity of 10 units per order

Compatibility

Designed as an OEM-style replacement insert for SANDVIK COROMANT 880-series indexable drill bodies accepting 06P square inserts with a 4.00 mm mounting hole. Confirm insert seat geometry and body compatibility before installation.

Installation Notes

Insert replacement is performed by CNC machinists or toolroom technicians with the machine powered down and spindle locked. Use a calibrated torque wrench and the manufacturer-specified Torx or hex key to secure the clamping screw — do not overtighten or use impact tools on insert screws. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert. Follow the toolholder manufacturer's service documentation for correct seating procedure.
