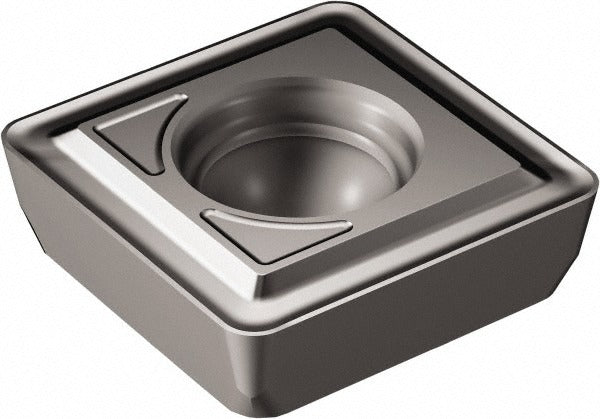

Sandvik Coromant 6626825 Indexable Drill Insert 880 Grade 4324

Product Description

The SANDVIK COROMANT 6626825 is a solid carbide indexable drill insert designed for use with compatible 880-series indexable drills. Manufactured to Grade 4324 with a CVD-applied TiCN and Al2O3 coating, this insert delivers hard, wear-resistant cutting performance in a range of metalcutting applications. It features an 880GM chipbreaker geometry and a square shape with a 6 mm (0.2362 inch) inscribed circle, 0.1024-inch thickness, and a 0.50 mm (0.0197-inch) corner radius. The cutting direction is right hand. Installation is handled by machinists and tool crib technicians in production and job-shop environments.

This insert is suited for drilling operations where a CVD-coated solid carbide grade is required for steel and similar workpiece materials. The GM chipbreaker is intended for general-purpose chip control during through-hole and blind-hole drilling. It fits 880-series indexable drill toolholders that accept a square insert with a 2.50 mm hole diameter and 030305 insert size designation. One insert is supplied per package.

Key Features

• Grade 4324 solid carbide substrate with CVD TiCN and Al2O3 coating for wear resistance
• 880GM chipbreaker geometry for general-purpose chip control
• Square shape, 6 mm inscribed circle (0.2362 inch), 030305 insert size
• 0.50 mm corner radius for controlled edge geometry
• Right-hand cutting direction
• 2.50 mm mounting hole diameter for secure seating in 880-series toolholders

Compatibility

Designed for use with 880-series indexable drill toolholders that accept a square solid carbide insert with a 030305 size designation and 2.50 mm hole diameter. Confirm toolholder seat specifications before installation.

Installation Notes

Insert replacement is performed by machinists or tool crib personnel following machine lockout and energy isolation procedures. Use the correct Torx or hex key as specified by the toolholder manufacturer to seat the insert clamp screw — do not over-tighten by feel alone, follow the toolholder OEM fastener specification. Inspect the insert pocket and seating surface for chips or debris before installing a new insert. Handle carbide inserts with care to avoid chipping the cutting edge prior to use.
