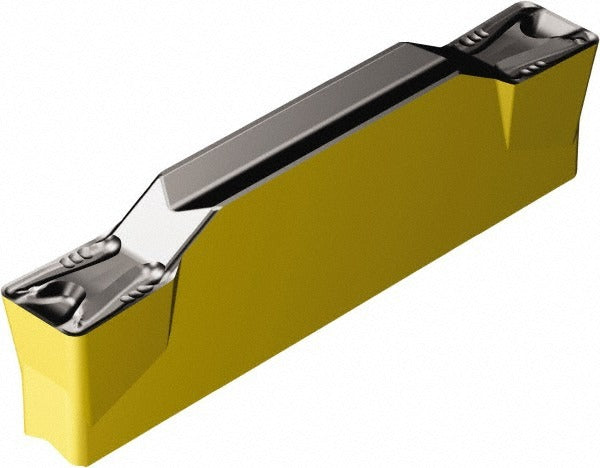

Sandvik Coromant 6532132 Grooving Insert 5mm Corocut 1-2

Product Description

The SANDVIK COROMANT 6532132 is a solid carbide grooving insert designed for precise grooving and parting operations on CNC lathes and turning centers. It carries the ISO designation N123J2-0500-0008-TM 4325 and belongs to the CoroCut 1-2 series. The insert features a 5.00 mm cutting width and a maximum depth of cut of 23.00 mm, making it suited for medium to deep groove profiles. A multilayer MT-CVD coating of TiCN, Al2O3, and TiN in manufacturer grade 4325 delivers wear resistance and heat control during continuous and interrupted cuts. The neutral hand orientation supports flexible toolholder pairing. This insert is installed by machinists and CNC operators working in production turning environments.

The 6532132 is intended for grooving, parting, and recessing applications on turning centers where controlled chip formation and dimensional accuracy are required. The TM chip breaker geometry supports positive rake cutting action, which reduces cutting forces and improves chip evacuation in a range of materials. The CoroCut 1-2 platform is a widely used modular insert system in production machining shops handling medium to high-volume turning work. The insert seat size is J with an insert size designation of J2, and the cutting height measures 4.35 mm.

Key Features

• Solid carbide substrate with MT-CVD multilayer coating: TiCN, Al2O3, and TiN for extended tool life
• 5.00 mm cutting width with a maximum depth of cut of 23.00 mm
• Neutral hand orientation for use with compatible left- or right-hand toolholders
• TM chip breaker with positive rake for reduced cutting forces and reliable chip control
• 0.80 mm corner radius for a blend of edge strength and profile accuracy
• Multi-use insert compatible with the CoroCut 1-2 insert seat system

Compatibility

Designed for use with CoroCut 1-2 series toolholders that accept a J-seat, J2 insert size. Specific compatible toolholder model numbers were not provided in the product data — consult SANDVIK COROMANT toolholder selection resources to confirm proper seat and clamping compatibility before installation.

Installation Notes

Insert installation and indexing should be performed by a qualified machinist with the machine spindle fully stopped and all axis motion disabled. Use the manufacturer-recommended torque wrench or insert key to seat the insert securely in the pocket without over-tightening the clamping screw. Inspect the insert seat for chips or debris before seating a new insert, as contamination can affect insert orientation and cutting performance. Follow the machine tool builder and toolholder manufacturer guidelines for insert change intervals and runout verification after seating.
