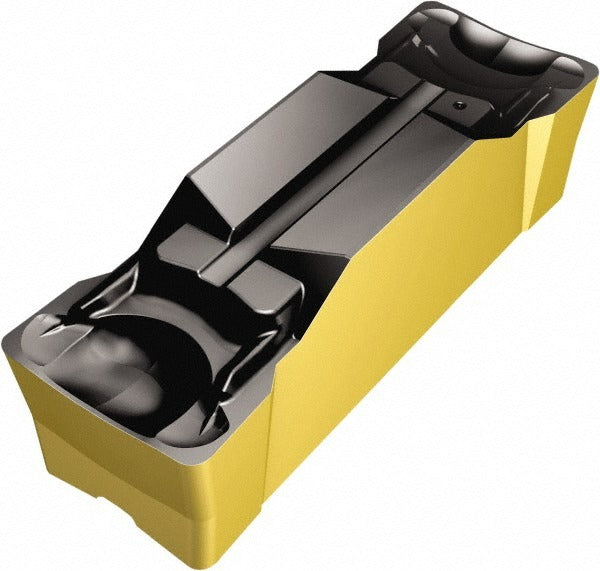

Sandvik Coromant 6532094 Grooving Insert 6mm Corocut 1-2

Product Description

The SANDVIK COROMANT 6532094 is a solid carbide grooving insert engineered for precision external grooving and parting operations on CNC lathes and turning centers. This insert carries a multi-layer MT-CVD coating of TiCN, Al2O3, and TiN, assigning it manufacturer grade 4325 for wear resistance in both continuous and interrupted cuts. The cutting width is 6.00 mm (0.2362 inches), maximum depth of cut reaches 22.70 mm (0.8937 inches), and the corner radius measures 0.40 mm (0.0157 inches). The neutral hand orientation and GM chip breaker geometry make it suitable for a wide range of workpiece materials and moderate chip-load conditions. Licensed machinists and CNC tool setters in production and job-shop environments are the primary installers of this insert.

This insert belongs to the CoroCut 1-2 series, a tooling platform commonly used in medium-to-heavy grooving applications on both small and large-diameter workpieces. It is sized as an Insert Size K with an ISO code of N123K2-0600-0004-GM 4325. The 7-degree rake angle and neutral rake orientation support consistent chip control across ferrous and non-ferrous turning applications. The GM chip breaker geometry is optimized for grooving at moderate feed rates and cutting depths in the 20.00 mm and greater range. This insert is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with MT-CVD TiCN/Al2O3/TiN multilayer coating for extended tool life
• 6.00 mm cutting width with a 22.70 mm maximum depth of cut for deep-groove capability
• GM chip breaker geometry designed for consistent chip control in grooving operations
• Neutral hand orientation accommodates standard right-hand CoroCut 1-2 toolholders
• 0.40 mm corner radius minimizes stress concentration at groove root
• Multi-use rated insert suitable for grooving, parting, and profiling applications

Compatibility

Designed for use with CoroCut 1-2 series toolholders accepting Insert Size K seats. ISO code N123K2-0600-0004-GM 4325 identifies direct toolholder compatibility within the CoroCut 1-2 platform.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. The machine spindle must be fully stopped and all stored energy discharged before seating or removing inserts. Use the appropriate insert-clamping key or torx wrench specified for the CoroCut 1-2 toolholder — do not substitute drivers. Verify insert seating, clamping screw torque, and tool offset compensation in the machine control before returning to production cuts.
