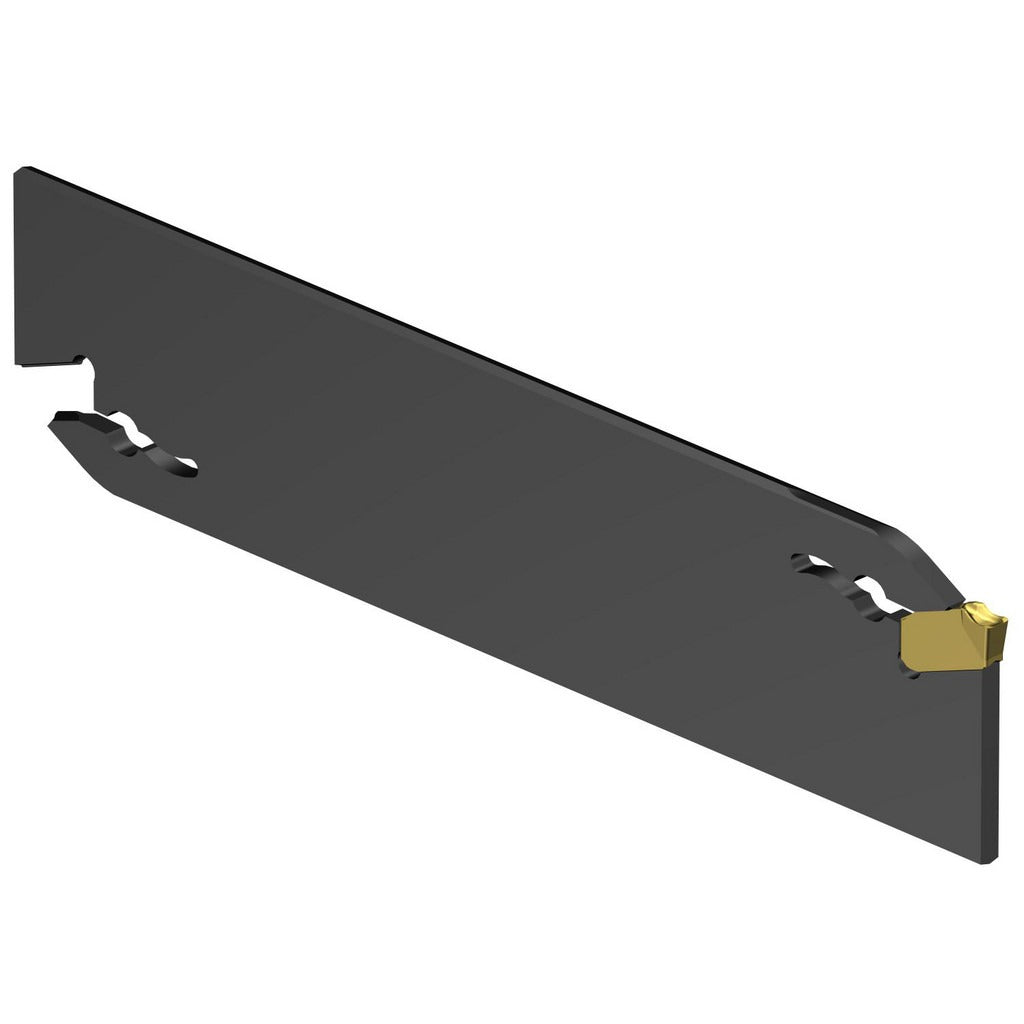

Sandvik Coromant 6397272 Indexable Grooving Blade Neutral

Product Description

The SANDVIK COROMANT 6397272 is an indexable grooving blade designed for parting and grooving operations on CNC lathes and turning centers. Part of the CoroCut QD series, this double-end blade measures 1.0197 inches in blade height and 4.3307 inches in overall length, with a maximum depth of cut of 1.2992 inches. The neutral cutting direction makes it suitable for standard radial grooving and parting applications. It uses a clamp-style insert holding method and accepts QD-NN2..A compatible inserts with an insert seat size of F. Machinists and CNC tooling specialists install this blade as a replacement or new setup component in qualifying CoroCut QD cartridge systems.

This blade is intended for use in turning and parting applications where consistent groove geometry and reliable insert retention are required. It is compatible with cartridge size 21 and accepts the QD-NF-0250-0002-CM insert for precision grooving work. The double-end design maximizes tooling value by providing two usable ends per blade. The narrow blade width of 0.0885 inches allows for tight-tolerance parting cuts and minimal material waste. Typical installations are found in production turning environments running ferrous and non-ferrous materials where the CoroCut QD system is already in use.

Key Features

• Neutral cutting direction for standard radial parting and grooving operations
• Double-end blade design provides two usable cutting positions per blade
• Maximum depth of cut of 1.2992 inches supports deep grooving and full parting cuts
• Clamp-style insert holding method ensures secure insert retention under load
• Compatible insert style QD-NN2..A with insert seat size F for precise fitment
• Part of the CoroCut QD series for use with cartridge size 21 toolholders

Compatibility

Designed for use with CoroCut QD cartridge size 21 toolholders. Accepts QD-NN2..A compatible inserts, including the QD-NF-0250-0002-CM insert. Verify cartridge size and insert style against your existing toolholder setup before ordering.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine powered down and in a safe, locked-out state. Ensure the cartridge seat and clamping surfaces are clean and free of chips before seating the blade. Torque clamping screws according to the toolholder manufacturer specifications listed in the applicable CoroCut QD setup documentation. Do not exceed the maximum depth of cut specification during operation.
