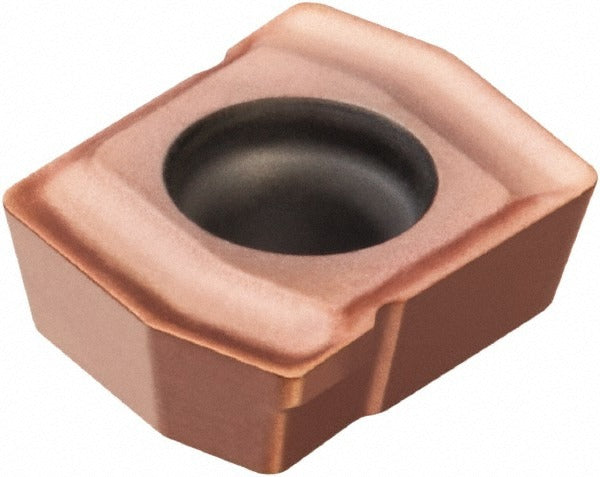

Sandvik Coromant 6227410 Indexable Drill Insert 880MS 2044

Product Description

The SANDVIK COROMANT 6227410 is a solid carbide indexable drill insert designed for use in indexable drill tooling systems requiring the 880 insert style. Carrying the MS chipbreaker geometry and manufacturer grade 2044, this insert features a TiAlN and AlCr2O3 coating applied via PVD process, providing thermal resistance and wear protection during interrupted and continuous drilling operations. The inscribed circle measures 4.80 mm (0.189 inches), thickness is 0.0866 inches, and the corner radius is 0.4 mm (0.0157 inches). The parallelogram shape and insert size designation 010204 are consistent with SANDVIK COROMANT 880-series drill body seating requirements. This insert is installed by machinists and tooling technicians in production and job-shop environments.

This insert is suited for drilling applications in steel, stainless steel, and similar materials where PVD-coated carbide grades are specified. The MS chipbreaker geometry is engineered for controlled chip formation in medium-feed drilling conditions. It fits indexable drill bodies designed to accept the 880-series parallelogram insert format, including center and peripheral seat positions depending on drill body configuration. Typical applications include hole-making operations on CNC machining centers and turning centers in both production and maintenance settings.

Key Features

• Solid carbide substrate with TiAlN and AlCr2O3 PVD coating for elevated wear resistance
• MS chipbreaker geometry for reliable chip control in medium-feed drilling
• Inscribed circle: 4.80 mm (0.189 inches); insert size 010204
• Corner radius: 0.4 mm (0.0157 inches) for controlled edge geometry
• Hole diameter: 2.2 mm for mounting screw fitment
• Parallelogram shape compatible with 880-series indexable drill bodies

Compatibility

Designed as a direct-fit replacement insert for SANDVIK COROMANT 880-series indexable drill bodies requiring style 880, parallelogram-shape inserts with insert size designation 010204.

Installation Notes

Insert replacement should be performed by qualified tooling technicians with the spindle fully stopped and machine in a locked-out state per applicable LOTO procedures. Use the correct Torx or insert-clamp key specified by the drill body manufacturer when seating the insert to avoid over-torquing the mounting screw. Inspect the insert pocket for chips, debris, or seat damage before indexing or replacing inserts. Do not use damaged or improperly seated inserts, as this can affect bore geometry and cause premature tool body wear.
