Sandvik Coromant 6199510 Grooving Insert Corocut 1-2

Product Description

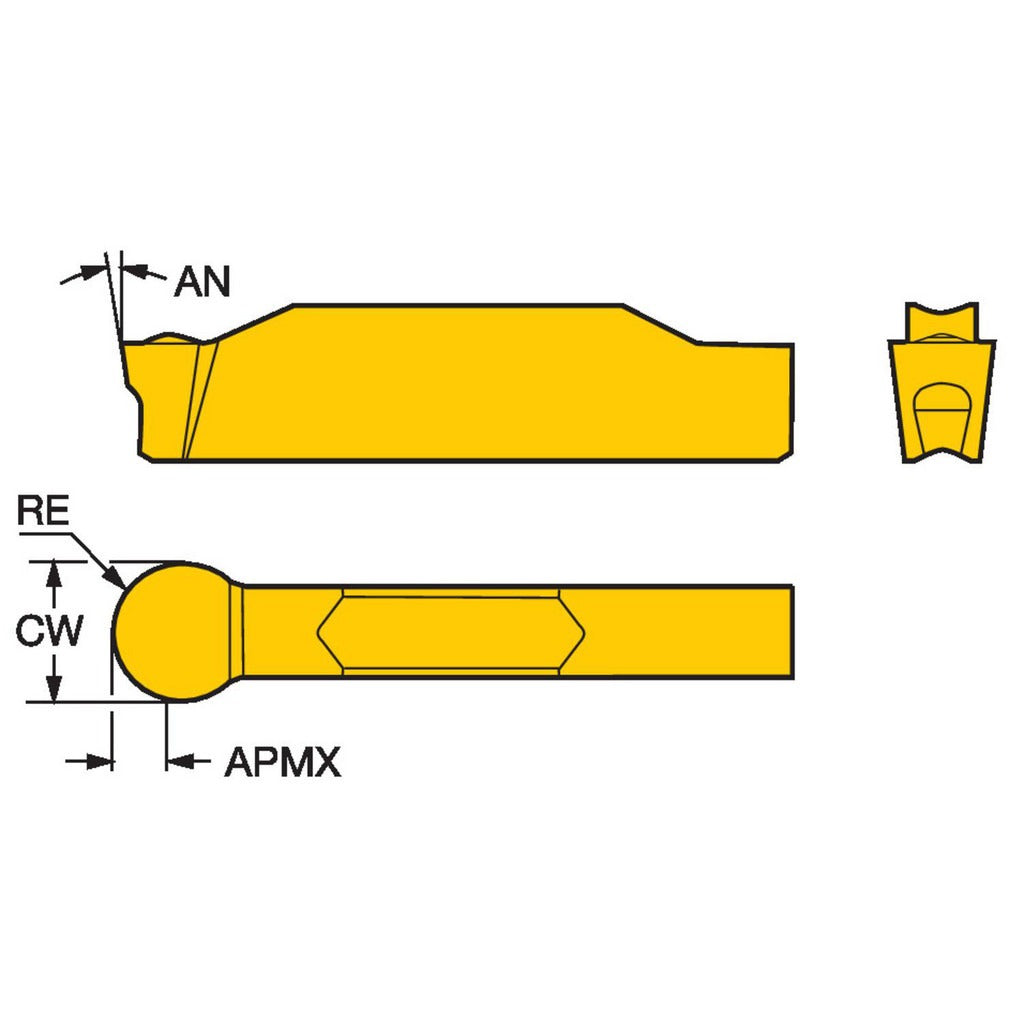

The SANDVIK COROMANT 6199510 is a solid carbide grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. Part of the CoroCut 1-2 series, this insert carries the N123 insert style designation and features a TiAlN coating applied via PVD process, delivering strong oxidation resistance and extended tool life in a wide range of workpiece materials. The cutting width measures 4.00 mm, maximum depth of cut is 1.80 mm, and the corner radius is 2.00 mm. The neutral hand orientation makes it suitable for straight-in grooving without directional bias. Grade 1125 carbide substrate is matched to the PVD TiAlN finish for balanced wear resistance and toughness.

This insert is used in external grooving, parting-off, and profiling applications on turning equipment. The CoroCut 1-2 system is a common platform in production shops handling both light and moderate duty grooving on ferrous and non-ferrous materials. The neutral hand allows mounting in standard CoroCut 1-2 compatible toolholders without requiring a left- or right-hand-specific setup. Typical users include CNC machinists and tool-room technicians in precision machining, job shop, and production manufacturing environments.

Key Features

• Solid carbide construction with PVD TiAlN coating for wear and oxidation resistance
• 4.00 mm cutting width with 1.80 mm maximum depth of cut
• 2.00 mm corner radius for controlled groove profile
• Neutral hand orientation for straight grooving in standard toolholders
• Grade 1125 substrate optimized for the CoroCut 1-2 system
• 7-degree rake angle for positive cutting action

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders and insert seats accepting the N123 insert style in size 0400. Consult the CoroCut 1-2 toolholder selection guide to confirm holder compatibility before ordering.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Ensure the machine spindle is fully stopped and the turret is in a safe indexed position before changing inserts. Seat the insert firmly and evenly in the CoroCut 1-2 pocket and tighten the clamping screw to the toolholder manufacturer's specified torque. Inspect the insert seat and clamping mechanism for debris or wear before installation to ensure proper seating and cutting edge security.
