Sandvik Coromant 6183823 Indexable Drill Insert 880 Ms

Product Description

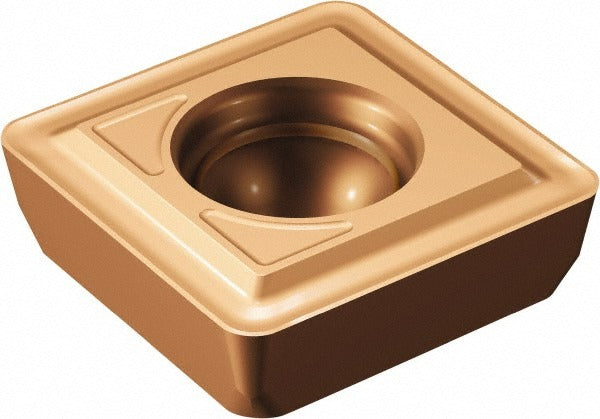

The SANDVIK COROMANT 6183823 is a solid carbide indexable drill insert designed for use in modular indexable drilling systems. Built to the 880 insert style with an MS chipbreaker geometry, this insert carries a manufacturer grade of 2044 and features a dual-layer PVD coating of TiAlN and AlCr2O3 for improved wear resistance and heat management at the cutting edge. The square insert shape offers a 0.498-inch (12.65 mm) inscribed circle and a 1.00 mm corner radius. It is installed by machinists and tooling technicians performing deep-hole or peck-drilling operations on CNC machining centers and drill presses.

This insert is suited for right-hand cutting operations in production machining environments, including job shops and manufacturing facilities running ferrous and non-ferrous materials. The MS chipbreaker is optimized for medium-feed drilling conditions where chip control is critical to maintaining hole quality and preventing tool damage. It fits the SANDVIK COROMANT 880 modular drill body system and is sized to the 07P insert seat.

Key Features

• Solid carbide substrate for rigidity and edge stability in demanding drilling applications
• PVD-applied TiAlN and AlCr2O3 dual-layer coating for elevated temperature resistance and extended tool life
• MS chipbreaker geometry engineered for effective chip evacuation at medium feed rates
• Square insert shape with 0.498-inch inscribed circle and 07P insert size designation
• 1.00 mm corner radius for balanced edge strength and surface finish performance
• Right-hand cutting direction compatible with standard CNC spindle rotation

Compatibility

Designed for use with SANDVIK COROMANT 880 series modular indexable drill bodies accepting 07P-size square insert seats.

Installation Notes

Insert replacement should be performed by a qualified machinist or tooling technician with the machine spindle fully stopped and the tool body secured. Use the appropriate Torx or insert-clamping key specified for the 880 drill body seat to seat the insert firmly without over-torquing the clamping screw. Inspect the insert pocket and clamping hardware for wear or debris before installing a new insert. Follow the drill body manufacturer guidelines for feed rate and speed recommendations for the 2044 grade and MS chipbreaker combination.
