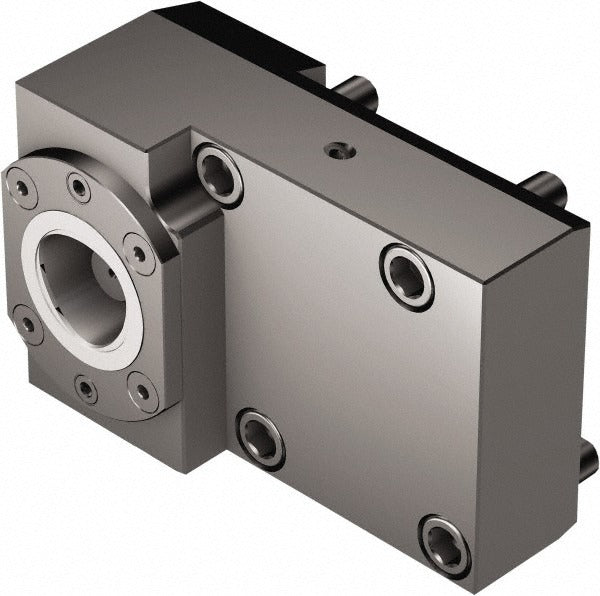

Sandvik Coromant 6144258 Coromant Capto Clamp

Product Description

The SANDVIK COROMANT 6144258 is a Cx-TRE-OK style clamp designed for use with indexable cutting inserts in Coromant Capto modular tooling systems. This clamping component secures indexable inserts in compatible Capto tooling bodies, providing repeatable positioning and secure retention during turning and boring operations. The catalog number associated with this part is C4-TRE-OK60A, indicating compatibility with C4-size Capto interfaces. Installation and tool management are typically handled by CNC machinists and tooling technicians in production machine shops. The part weighs 11.02 pounds and ships as a single-piece unit.

This clamp is used in CNC turning, boring, and machining center applications where Coromant Capto quick-change tooling is employed. The Coromant Capto system is widely used in both horizontal and vertical turning centers as well as multi-task machines. The C4-TRE-OK60A designation indicates this is a C4 Capto-size component suited for medium to large tooling assemblies in production and job shop environments. Tooling technicians and setup personnel integrate this clamp when building or rebuilding Capto tooling assemblies.

Key Features

• Cx-TRE-OK clamp style for secure indexable insert retention
• Part of the Coromant Capto modular quick-change tooling system
• Catalog number C4-TRE-OK60A designates C4-size Capto interface
• Single-piece package quantity for direct replacement use
• UNSPSC Code 23242100 for standardized procurement classification

Compatibility

Designed for use with Coromant Capto C4-size tooling bodies requiring a Cx-TRE-OK clamp, per catalog number C4-TRE-OK60A. Verify compatibility against your specific Capto tooling body assembly before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with Coromant Capto modular tooling systems. Always power down and lock out the machine spindle before servicing or replacing clamping components. Use only manufacturer-specified torque procedures and tools as outlined in the Coromant Capto assembly documentation for this clamp style. Inspect the mating tooling body interface for wear or damage before installing the replacement clamp.
