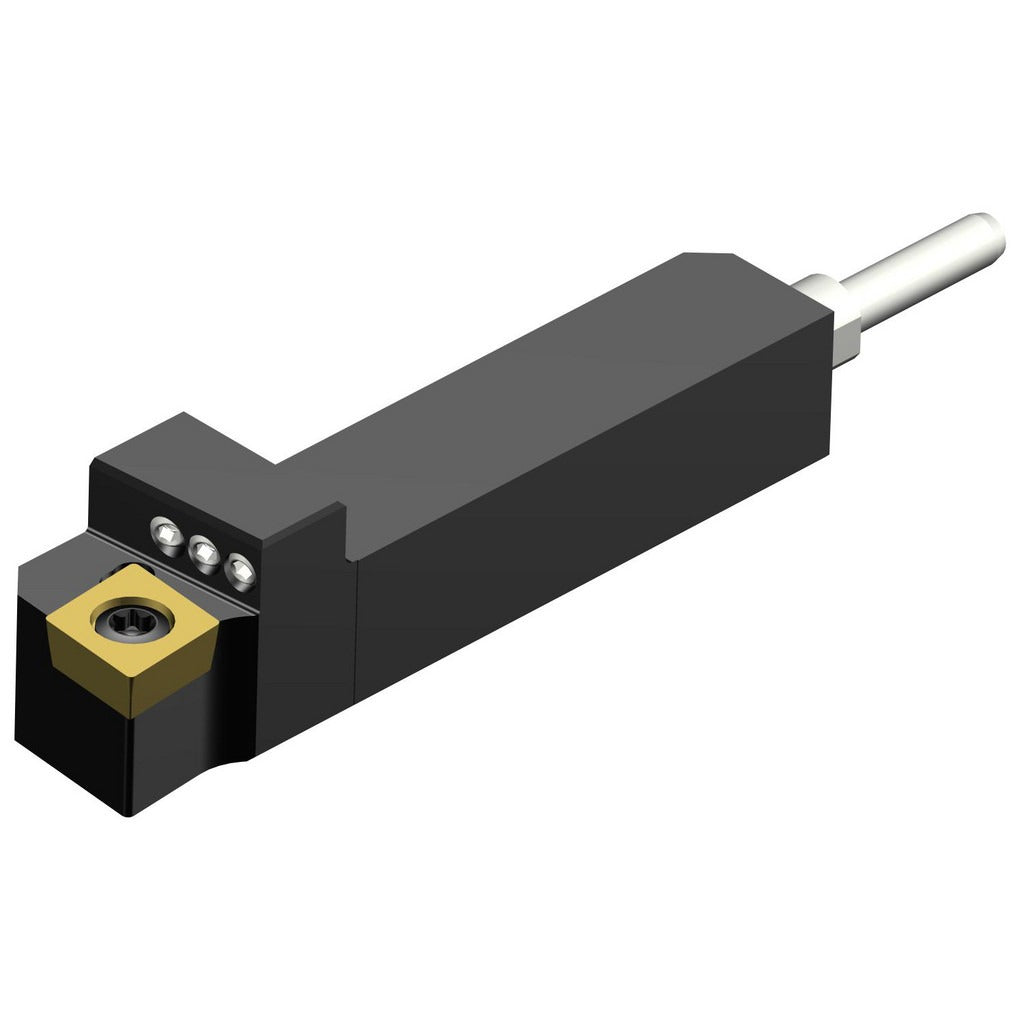

Sandvik Coromant 6010199 Indexable Turning Toolholder

Product Description

The SANDVIK COROMANT 6010199 is a QS-SCLCR-style indexable turning toolholder designed for precision facing operations on CNC lathes and turning centers. Built from steel with a right-hand cutting orientation and a neutral rake angle of 0 degrees, it accepts CCMT 32.52 inserts secured by a screw-clamping method. The shank measures 0.5 inches wide by 0.5 inches tall, with an overall length of 2.756 inches and a head length of 0.827 inches. This toolholder is part of the CoroTurn 107 series and is designated as a multi-use tool, making it a versatile option for shops running varied turning applications.

This toolholder is suited for use in production turning environments where facing is a primary operation. The QS quick-change interface allows for fast, repeatable tool changes, minimizing machine downtime between setups. It is intended for installation by machinists and CNC operators in both job shop and high-volume manufacturing settings. The screw-clamp insert retention method provides secure, consistent positioning of CCMT 32.52 inserts throughout the cutting cycle.

Key Features

• QS-SCLCR toolholder style with right-hand orientation for facing applications
• Screw-clamp insert holding method for secure, repeatable insert positioning
• Accepts CCMT 32.52 inserts with a 0.375-inch inscribed circle
• Neutral rake angle (0 degrees) for balanced cutting performance
• Steel construction for rigidity and durability in turning operations
• Multi-use designation supports a range of turning applications

Compatibility

Designed for use with CCMT 32.52 indexable inserts. Part of the CoroTurn 107 series toolholder system. Verify QS quick-change interface compatibility with your specific machine turret before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Power down and lock out the machine before mounting or removing the toolholder from the turret. Use calibrated torque tools when tightening the insert screw to avoid insert damage or improper seating. Confirm shank clearance and tool overhang requirements against your machine specifications prior to setup.
