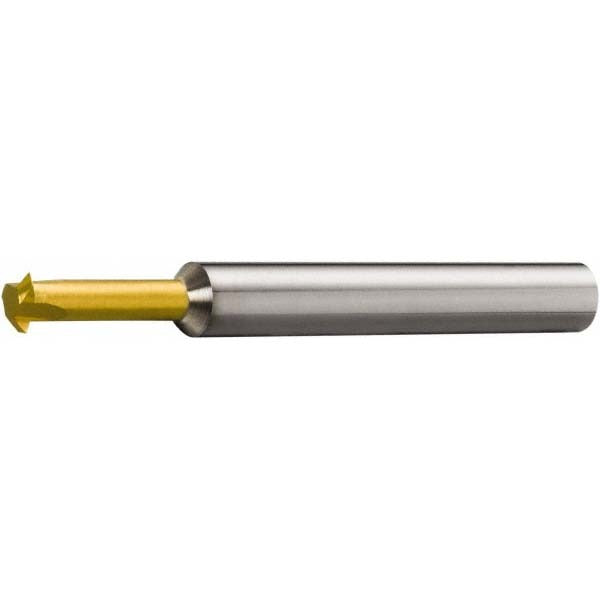

Sandvik Coromant 6010152 Thread Mill 16-50 Tpi Solid Carbide

Product Description

The SANDVIK COROMANT 6010152 is a single profile internal thread mill designed for cutting a wide range of thread pitches in a single tool. Built from solid carbide with a TiAlN/TiN coating, it handles internal threading operations from 16 to 50 TPI (0.50 mm to 1.50 mm pitch). The 3-flute geometry supports efficient chip evacuation during helical interpolation, making it well-suited for CNC machining centers where thread milling is preferred over tapping. With a cutting diameter of 0.3071 inches and a shank diameter of 0.3125 inches, this tool fits standard collet and end mill holders common in production and job shop environments.

This thread mill is intended for internal thread milling applications on CNC machining centers across a broad pitch range, eliminating the need to stock multiple tap sizes for the 16-50 TPI range. It is appropriate for ferrous and non-ferrous materials where a TiAlN/TiN coated solid carbide tool provides suitable wear resistance. Typical users include machining professionals in production shops, aerospace, and general manufacturing where thread quality and tool life consistency are priorities.

Key Features

• Single profile design covers 16 to 50 TPI (0.50 to 1.50 mm pitch) with one tool
• Solid carbide construction for rigidity and wear resistance
• TiAlN/TiN coating for improved thermal resistance and extended tool life
• 3-flute geometry promotes chip evacuation in internal threading operations
• Neck diameter of 0.2165 inches and neck length of 0.9843 inches provide clearance in blind and through-hole applications
• Compatible with standard collet chucks and end mill holders via 0.3125 inch shank

Compatibility

Designed for use on CNC machining centers capable of helical interpolation for internal thread milling applications in the 16 to 50 TPI range.

Installation Notes

Installation and use of this tool should be performed by qualified machinists or CNC programmers. Secure the shank fully in a collet or end mill holder and verify runout before cutting. Thread milling requires helical interpolation programmed at the correct pitch and cutting diameter offset — consult your CAM software or machine control documentation for proper cycle setup. Inspect the cutting edges before each use and do not exceed the tool's rated pitch range.
