Sandvik Coromant 6010076 Thread Mill 16-50 Tpi 3 Flute

Product Description

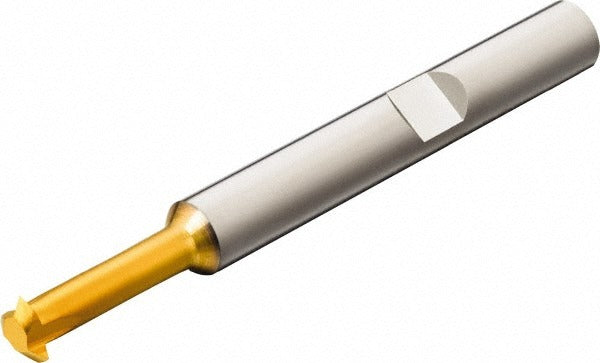

The SANDVIK COROMANT 6010076 is a single profile thread mill designed for cutting internal threads across a range from 16 to 50 TPI (0.50 mm to 1.50 mm pitch). Manufactured from solid carbide and finished with a TiAlN/TiN dual coating, this tool delivers consistent thread form in harder workpiece materials where high tool rigidity and thermal resistance are required. The 3-flute geometry supports efficient chip evacuation while maintaining accuracy on internal thread profiles. The cutting diameter measures 0.2283 inches with an overall length of 2.2835 inches, making it suitable for compact internal threading operations in machined components.

This thread mill is used in CNC machining centers for single-pass or helical interpolation threading of internal bores. It is suited for production and repair work in metalworking shops, tool rooms, and industrial maintenance environments. Licensed machinists and CNC operators working in aerospace, automotive, mold-and-die, and general precision manufacturing will find this tool appropriate for threading operations where tap breakage risk or thread form control is a priority. The neck diameter of 0.1378 inches and neck length of 0.5906 inches allow reach into blind and through-hole applications.

Key Features

• Covers 16 to 50 TPI range in a single tool, reducing tooling inventory requirements
• TiAlN/TiN dual coating provides heat resistance and extends tool life in ferrous and hardened materials
• Solid carbide construction delivers rigidity and dimensional stability during helical interpolation
• 3-flute design balances chip clearance with cutting stability on internal profiles
• Neck geometry with 0.1378-inch diameter and 0.5906-inch neck length supports reach into confined bore depths
• Single profile form allows use across multiple thread pitches without tool changes

Compatibility

Designed as an OEM-style replacement and standard production thread mill compatible with CNC machining centers equipped for helical interpolation of internal thread forms in the 16 to 50 TPI range.

Installation Notes

Installation and use should be performed by qualified CNC machinists or tool room technicians. The tool must be seated securely in a compatible collet or tool holder with runout minimized before operation. Verify spindle speed, feed rate, and helical interpolation parameters against the manufacturer programming guidelines before engaging the workpiece. Never exceed the tool's rated cutting diameter or use in applications outside the specified TPI range.
