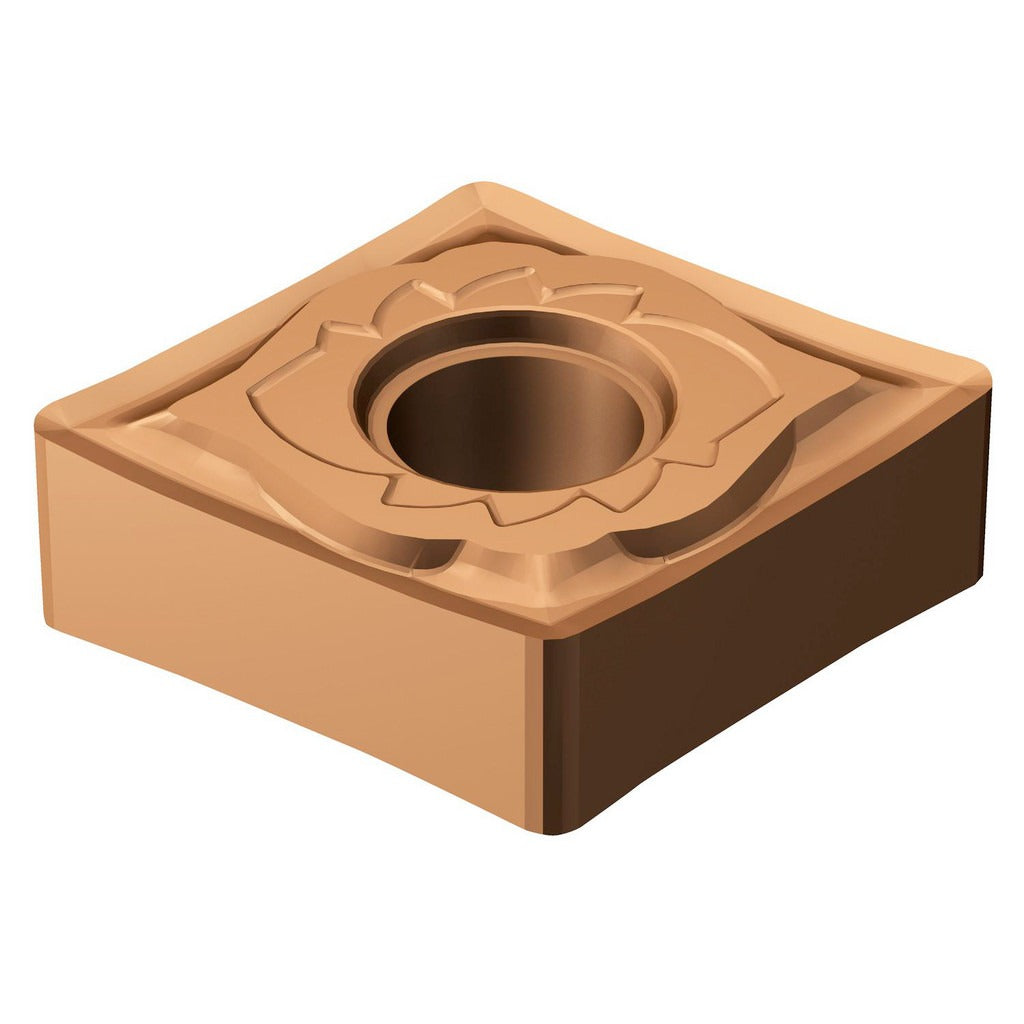

Sandvik Coromant 5908876 Turning Insert CNGG431-SGF 1115

Product Description

The SANDVIK COROMANT 5908876 is a solid carbide turning insert in the CNGG style, designed for precision external turning operations on CNC lathes and turning centers. This insert carries a dual PVD coating of TiAlN and AlCr2O3, which provides heat resistance and edge stability during high-speed cuts. It features an 80-degree diamond insert shape, a 1/2-inch inscribed circle, and a 1/64-inch corner radius. The chip breaker geometry is SGF, optimized for smooth chip evacuation in demanding applications. Neutral hand orientation makes it adaptable to a wide range of toolholder setups. It is installed by machinists and CNC operators working in precision machining environments.

This insert is engineered primarily for machining stainless steel, with secondary suitability for superalloys and titanium. These are demanding workpiece materials that require consistent edge performance and thermal management. The T-Max P series is a well-established platform for general turning, making this insert applicable to both roughing and finishing passes depending on feed and depth parameters. It is suited for production environments where insert consistency and tool life predictability are critical to maintaining cycle time and surface finish targets.

Key Features

• Solid carbide substrate with PVD-applied TiAlN and AlCr2O3 dual coating for heat and wear resistance
• SGF chip breaker geometry optimized for stainless steel and superalloy chip control
• 80-degree diamond insert shape provides a strong cutting edge with moderate clearance
• 1/64-inch corner radius suitable for light to moderate finishing and semi-finishing passes
• 4 cutting edges per insert for extended tool economy
• Neutral hand orientation compatible with a broad range of CNGG-style toolholders
• Clamp and pin holding method for secure seating in the toolholder pocket

Compatibility

Designed for use in toolholders that accept CNGG-style inserts with a 1/2-inch inscribed circle and clamp or pin holding. ISO designation for this insert is CNGG120404-SGF 1115. Verify toolholder pocket geometry and clamping method before installation.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Always power down and lock out the machine spindle before seating or replacing inserts. Ensure the toolholder pocket is clean and free of chips or debris before installing the insert, as contamination can affect seating accuracy and surface finish. Do not exceed the insert manufacturer's recommended feed and speed parameters for the target workpiece material.
