Sandvik Coromant 5906709 Turning Insert CNMG543-SM 1115

Product Description

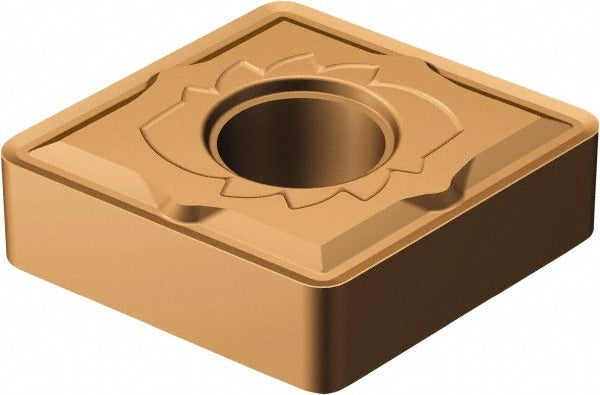

The SANDVIK COROMANT 5906709 is a CNMG-style solid carbide turning insert in the T-Max P series, designed for precision external turning operations on CNC lathes and turning centers. Manufactured to ISO code CNMG 16 06 12-SM 1115, it features a dual-layer TiAlN and AlCr2O3 coating applied via PVD process for high heat resistance and edge stability. The insert carries a neutral hand orientation, an 80-degree diamond shape, a 0.4173-inch cutting edge length, and a 3/64-inch corner radius. The SM chip breaker geometry is engineered to control chip flow and reduce built-up edge when cutting difficult materials. Licensed HVAC techs, machinists, and CNC operators in metalworking and manufacturing environments are the primary installers and users of this insert.

This insert is primarily optimized for stainless steel (ISO material group M) and is also rated for superalloys and titanium (ISO material group S). These are demanding workpiece materials that require sharp, stable cutting edges and effective chip evacuation. The T-Max P series insert system is a common platform in production turning environments where consistent tool life and surface finish are critical. The CNMG 543 geometry suits medium to finishing-range depths of cut in these hard-to-machine alloy families.

Key Features

• Solid carbide substrate with PVD-applied TiAlN and AlCr2O3 dual-layer coating for high-temperature wear resistance
• SM chip breaker geometry engineered for stainless steel and superalloy chip control
• 80-degree diamond insert shape (CNMG style) with 4 usable cutting edges
• 3/64-inch (0.0469 inch) corner radius for a balance of edge strength and surface finish
• Neutral hand orientation fits standard CNMG toolholders with clamp or pin holding methods
• ISO CNMG 16 06 12-SM 1115 classification for cross-reference and toolholder compatibility verification

Compatibility

Designed for use in standard CNMG 543-style toolholders that accept clamp or pin insert-holding methods. Verify toolholder pocket dimensions against the insert thickness of 0.2500 inches (1/4 inch) and inscribed circle of 0.6250 inches (5/8 inch) before installation. No specific machine or toolholder model compatibility was provided in the product data.

Installation Notes

Installation of turning inserts should be performed by qualified machinists or CNC tooling technicians with the machine fully powered down and the spindle locked. Use the correct torque wrench and clamping hardware specified by the toolholder manufacturer when seating the insert. Inspect the pocket seat and clamp for wear or damage before inserting a new edge. Never use a chipped or cracked insert, and always index to a fresh cutting edge before resuming operation.
