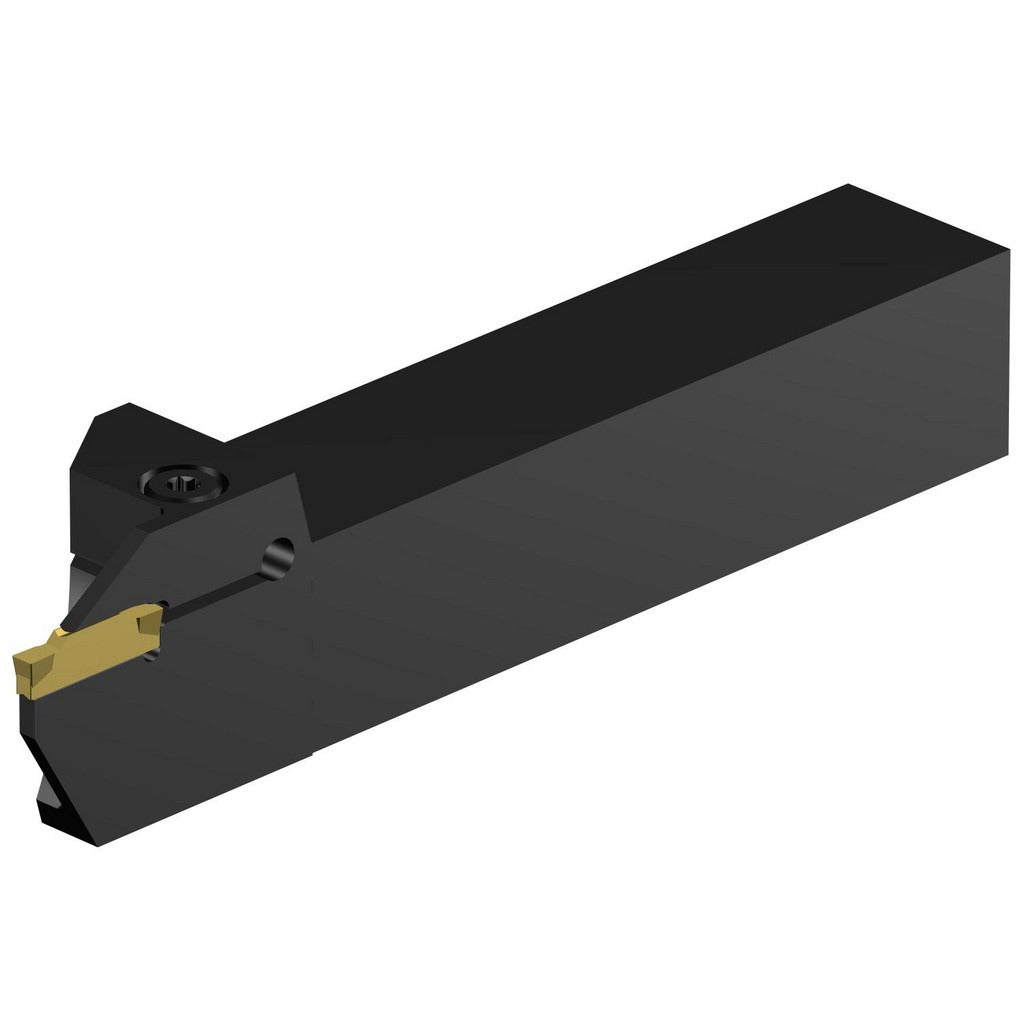

Sandvik Coromant 5856801 Grooving Toolholder Right Hand

Product Description

The SANDVIK COROMANT 5856801 is a right-hand indexable grooving toolholder from the CoroCut 1-2 series, designed for non-face grooving operations in both internal and external configurations. Built from steel with a 1 x 1 inch square shank, it handles a maximum depth of cut of 0.87 inches and accommodates workpieces up to 1.7402 inches in diameter. The toolholder uses a clamp-style insert holding method and is compatible with N123G2 series inserts, specifically the N123G2-0300-0003-TF. This is a multi-use toolholder intended for CNC lathe and turning center applications where reliable, repeatable grooving performance is required.

This toolholder is suited for machining shops and production environments running grooving operations on lathes and turning centers. It handles both internal and external grooving setups without coolant-through capability, making it appropriate for standard flood or dry cutting conditions. The F123 toolholder style and right-hand cutting direction make it compatible with conventional right-hand turning setups. Licensed machinists and tooling specialists typically specify and install this holder as part of a configured turning toolstation.

Key Features

• Internal and external grooving capability in a single toolholder
• Right-hand cutting direction with F123 toolholder style
• 1 x 1 inch square shank for rigid, stable mounting
• Maximum depth of cut of 0.87 inches for deep grooving applications
• Clamp-style insert retention for secure, repeatable insert indexing
• Maximum overhang of 1.6968 inches for reach into confined grooving zones
• Multi-use designation allows flexible deployment across grooving setups

Compatibility

Compatible with N123G2 series inserts, specifically insert style N123G2-0300-0003-TF. Maximum workpiece diameter of 1.7402 inches. Part of the SANDVIK COROMANT CoroCut 1-2 series toolholder system.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. The machine spindle must be fully stopped and the machine placed in a locked or E-stop state before mounting or changing toolholders. Secure the shank fully in the tool turret or block to the tool block manufacturer's specified clamping procedure. Verify insert seating and clamp torque before returning the machine to operation.
