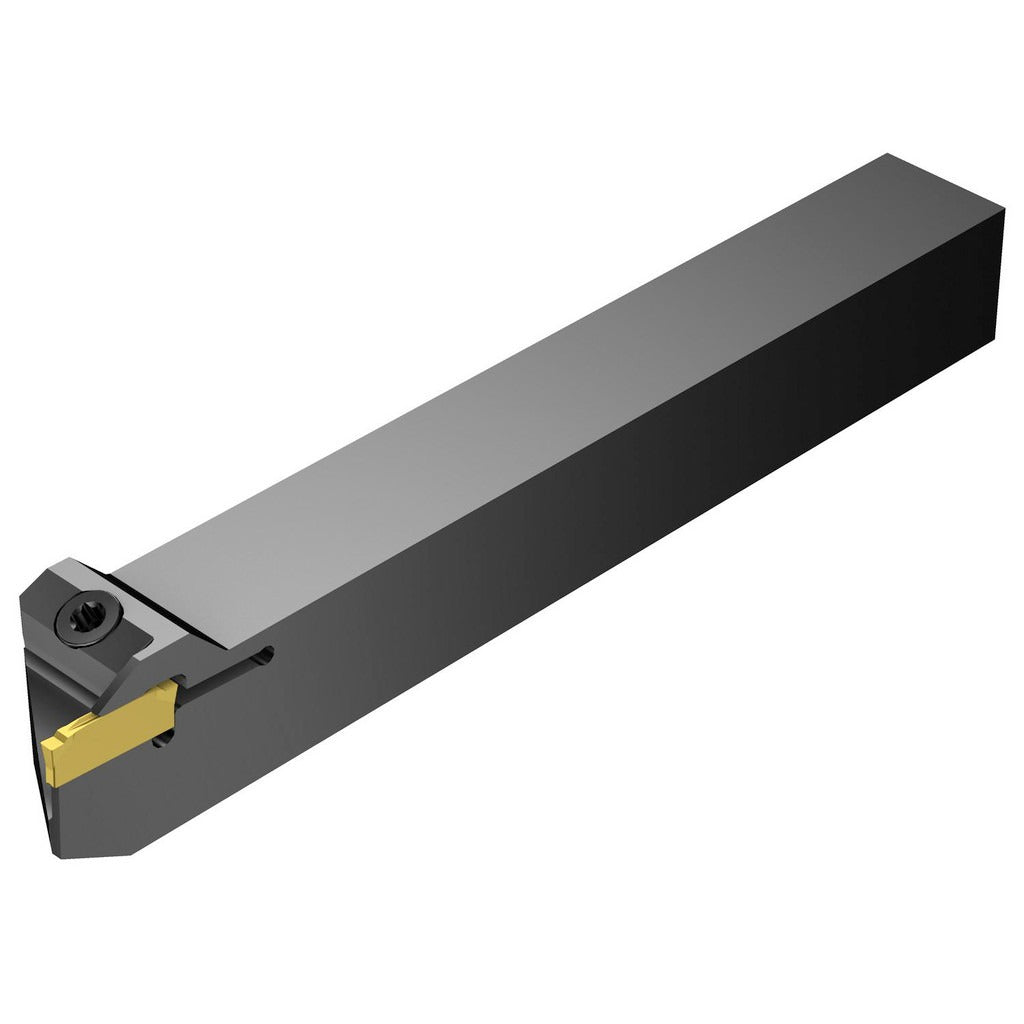

Sandvik Coromant 5856751 Grooving Toolholder Rh

Product Description

The SANDVIK COROMANT 5856751 is a right-hand indexable grooving toolholder from the CoroCut 1-2 series, designed for both internal and external grooving operations on CNC lathes and turning centers. The toolholder features a 0.5 inch square shank (0.5 inch width by 0.5 inch height) and accepts N123F2 series inserts secured by a top-clamp holding method. With a maximum depth of cut of 0.59 inches (15 mm) and a maximum workpiece diameter of 1.18 inches, this toolholder is built for precision grooving in tight-tolerance applications. Toolholder material is steel, and the overall length is 5 inches.

This toolholder is suited for shop-floor machinists and toolroom technicians running internal or external grooving operations on small-diameter workpieces. The CoroCut 1-2 style F123 body is a widely used platform in production turning environments where reliable insert seating and repeatable groove geometry are required. It is classified as a multi-use tool, making it adaptable across a range of grooving and parting applications within its size range. No coolant-through capability is present on this model.

Key Features

• Handles both internal and external grooving operations in a single toolholder body
• Right-hand cutting direction with clamp-style insert holding for secure, repeatable seating
• Maximum depth of cut of 0.59 inches (15 mm) suitable for most small-part grooving work
• 0.5 inch square shank fits standard lathe tool blocks and quick-change toolposts
• CoroCut 1-2 F123 series platform with broad insert availability (N123F2 compatible)
• Overall length of 5 inches with a maximum overhang of approximately 1.05 inches

Compatibility

Compatible with N123F2-0250-0002-CM inserts (compatible insert size code: N123F2). Designed as an OEM-specification toolholder within the CoroCut 1-2 series for use on CNC turning centers and engine lathes accepting a 0.5 inch square shank.

Installation Notes

Installation is performed by machinist or toolroom personnel familiar with CNC lathe tooling setup. Ensure the machine is in an E-stop or powered-down state and the spindle is fully locked before mounting or changing toolholders. Secure the shank firmly in the tool block or quick-change post to the torque specification recommended by the machine manufacturer. Verify insert seating and clamp engagement before resuming cutting operations.
