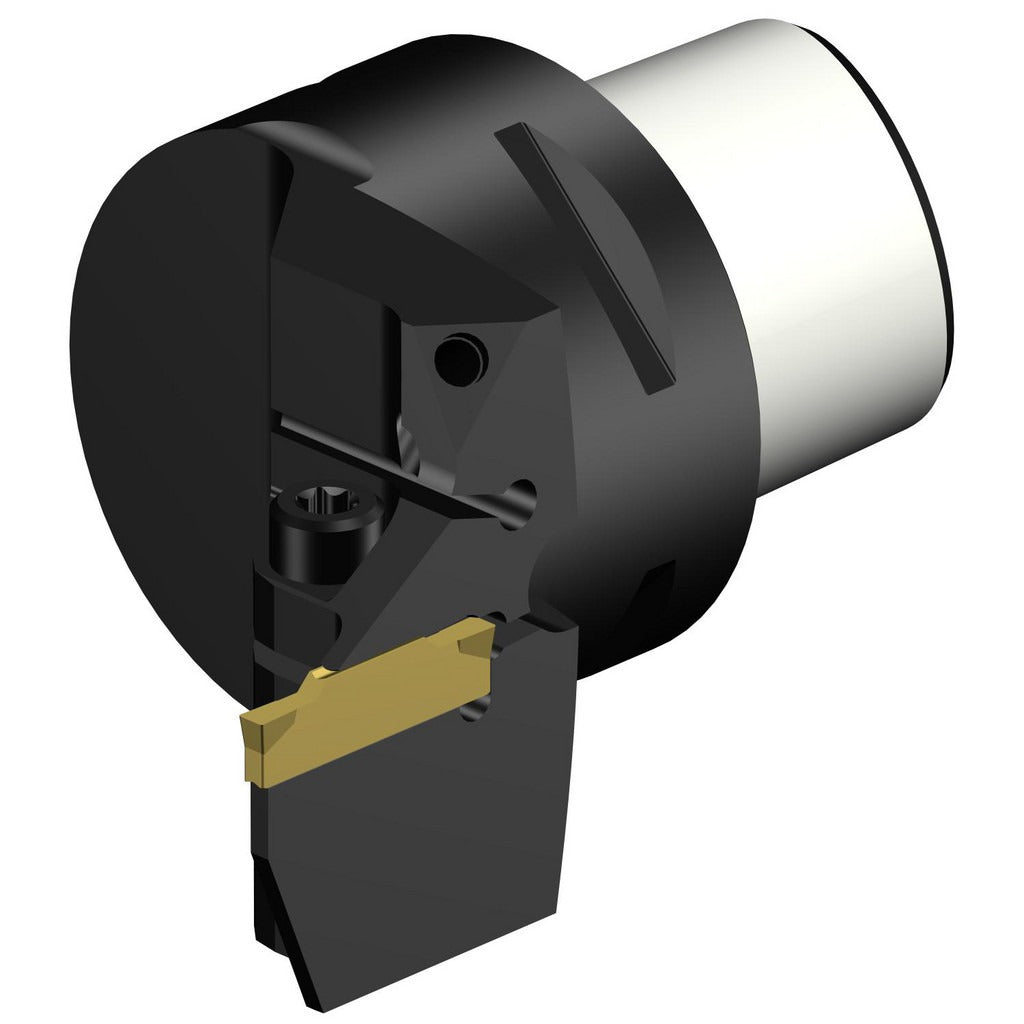

Sandvik Coromant 5846669 Modular Grooving Head C4 Corocut 1-2

Product Description

The SANDVIK COROMANT 5846669 is a modular grooving head designed for right-hand cutting operations in CNC turning and grooving applications. Part of the CoroCut 1-2 series, this cutting head mounts at System Size C4 and accepts N123 Size E inserts, specifically compatible with the N123E2 0200-0002-CM insert. It delivers a maximum depth of cut of 0.315 inches (8.00 mm) and features through-coolant capability to support chip evacuation and thermal control at the cutting zone. With a head length projection of 1.969 inches (50.00 mm), it is suited for precision grooving work on a lathe or turning center.

This modular grooving head is used in machining environments where repeatable grooving, parting, and related turning operations are required. The C4 system size and CoroCut 1-2 platform make it a common choice in both production and job-shop settings running compatible SANDVIK COROMANT modular tooling systems. It is typically installed by machinists or toolroom technicians on CNC lathes and turning centers configured for modular quick-change tooling.

Key Features

• Right-hand cutting direction for standard CNC lathe grooving operations
• System Size C4 modular interface for secure, repeatable head changes
• Maximum depth of cut of 0.315 inches (8.00 mm)
• Through-coolant design supports chip evacuation and tool life at depth
• Head length projection of 1.969 inches (50.00 mm)
• Compatible with N123 Size E inserts, including N123E2 0200-0002-CM

Compatibility

Compatible with N123 Size E inserts. Confirmed insert compatibility includes the N123E2 0200-0002-CM. Designed for use with SANDVIK COROMANT CoroCut 1-2 series modular tooling systems at System Size C4.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Shut down spindle rotation and confirm the machine is in a safe, locked-out state before removing or installing any cutting head. Ensure the C4 modular interface and mating surfaces are clean and free of chips or debris before seating the head. Verify coolant line continuity through the holder assembly if through-coolant is required for the application.
