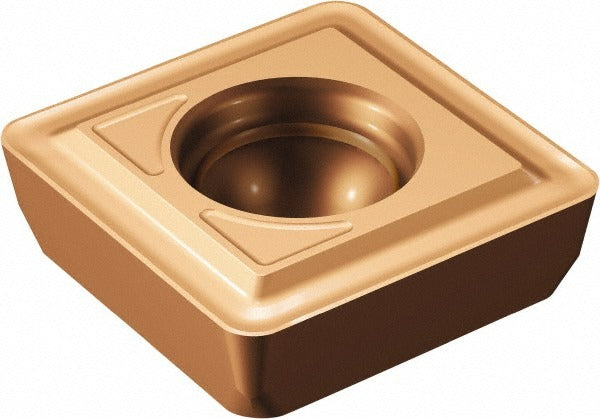

Sandvik Coromant 5765715 Indexable Drill Insert Square

Product Description

The SANDVIK COROMANT 5765715 is a solid carbide indexable drill insert designed for use in 880-series indexable drills. It carries the 880MS series designation with a 2044 manufacturer grade and features a TiAlN and AlCr2O3 PVD coating for wear resistance in demanding drilling operations. The insert has a square shape with a 0.2913 inch (7.40 mm) inscribed circle, a thickness of 0.1102 inches (2.80 mm hole diameter), and a corner radius of 0.0276 inches (0.70 mm). The MS chipbreaker geometry is engineered for controlled chip formation in a range of workpiece materials. This insert is installed by machinists and tooling technicians working on CNC machining centers and drill press applications.

This insert is suited for use in metalworking and machining environments where indexable drilling tools are required. It is a right-hand cutting direction insert compatible with 880-series indexable drill bodies. Typical applications include hole-making operations in production machining on ferrous and non-ferrous materials. The PVD-applied TiAlN and AlCr2O3 coating layers provide thermal stability and edge retention in both dry and minimum quantity lubrication (MQL) setups. The insert size designation is 04P, and the length and width are both 0.2913 inches (7.40 mm).

Key Features

• Solid carbide substrate with TiAlN and AlCr2O3 PVD coating for extended tool life
• MS chipbreaker geometry for controlled chip evacuation during drilling
• Square insert shape with 0.2913 inch inscribed circle and 0.0276 inch corner radius
• Right-hand cutting direction for standard CNC and manual drill applications
• Insert size 04P with consistent dimensional tolerances for repeatable indexing

Compatibility

Designed as an OEM-style replacement insert for SANDVIK COROMANT 880-series indexable drill bodies requiring a square, 04P-size insert with MS chipbreaker geometry.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the drill body is fully secured and the machine spindle is powered down and locked out before indexing or replacing inserts. Use the correct torx or hex key as specified by the drill body manufacturer for the insert clamping screw. Avoid over-torquing the clamping screw, as this can damage the insert seat or the insert itself.
