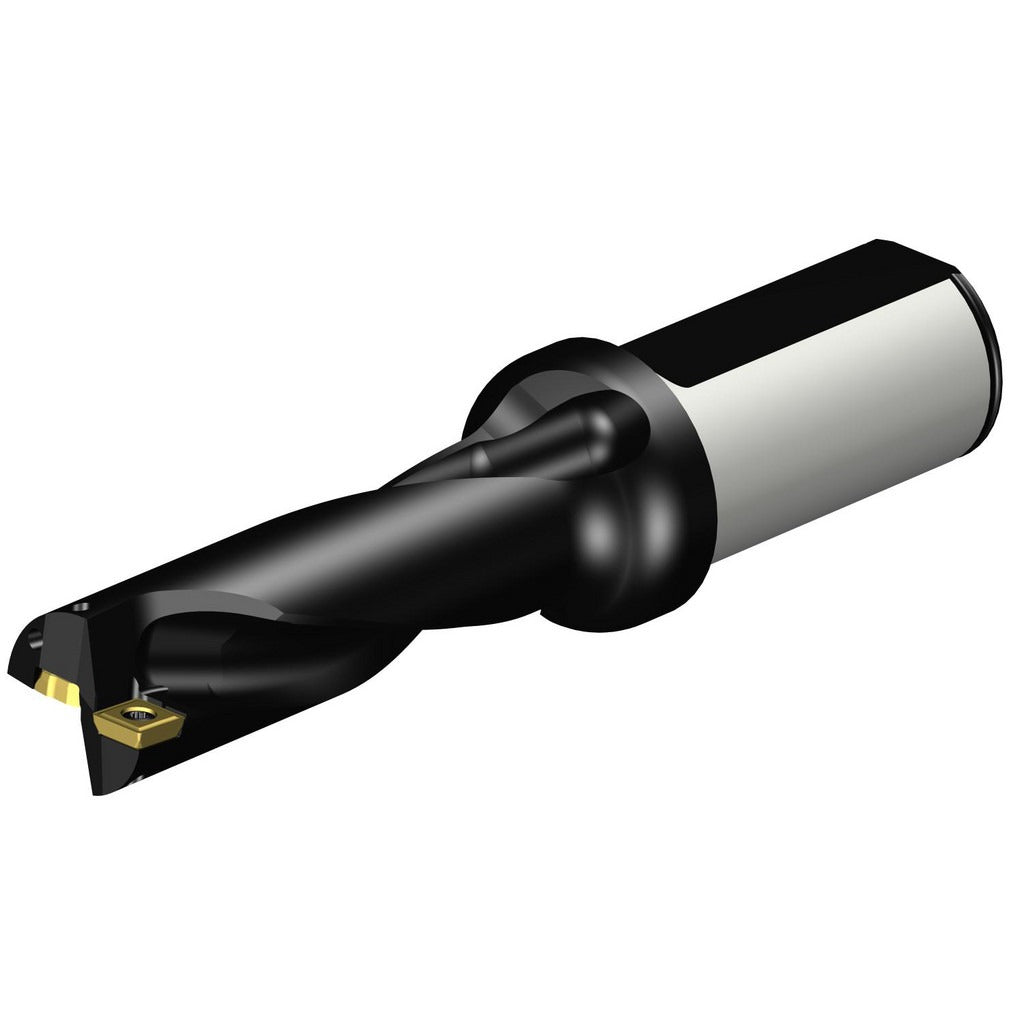

Sandvik Coromant 5765360 Indexable Insert Drill 26mm 3xd

Product Description

The SANDVIK COROMANT 5765360 is a steel-body indexable insert drill designed for high-productivity hole-making in metal cutting applications. Built to the CoroDrill 880 series platform, it accepts two indexable inserts and delivers a maximum drill depth of 81.12mm (3.19 inches) at a 3xD depth-to-diameter ratio. The drill diameter is 26mm (1.09 inches) with a 32mm (1.26 inches) straight cylindrical shank. Coolant-through capability supports chip evacuation and insert life at elevated cutting parameters. Right-hand cutting direction. Intended for use by machinists and toolroom professionals on CNC machining centers and milling machines configured for drilling cycles.

This drill is suited for production and job-shop environments where indexable tooling is preferred over solid carbide for cost-per-hole efficiency on steel, cast iron, and similar workpiece materials. The straight cylindrical shank fits standard ER or hydraulic chuck toolholders sized for 32mm shanks. The 3xD ratio makes it a practical choice for through-holes and blind holes in the common shallow-to-moderate depth range found in structural, automotive, and general machining work.

Key Features

• 26mm (1.09 inches) drill diameter with 81.12mm (3.19 inches) maximum drill depth
• 3xD depth-to-diameter ratio for controlled chip load and stable drilling
• Takes 2 indexable inserts — compatible with 880..L-03 drill style inserts, 3.00mm insert size
• Coolant-through design for internal coolant delivery to the cutting zone
• 32mm (1.26 inches) straight cylindrical shank for rigid toolholder engagement
• Right-hand cutting direction; steel body construction

Compatibility

Compatible with indexable inserts in drill style 880..L-03. Designed for use in toolholders accepting a 32mm straight cylindrical shank. Refer to SANDVIK COROMANT insert selection guides for the correct insert grade and geometry for the target workpiece material.

Installation Notes

Installation and setup should be performed by a qualified machinist or toolroom technician. Secure the shank in a clean, properly sized chuck or toolholder and verify runout before cutting. Power down the machine spindle and follow lockout/tagout procedures before inserting or replacing indexable inserts. Torque insert screws only with the manufacturer-supplied key; do not use substitute drivers that may damage the screw seat.
