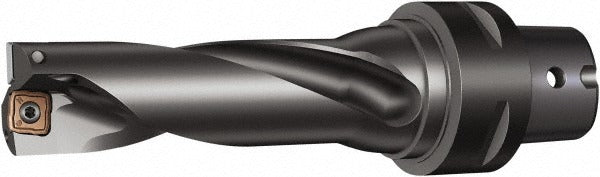

Sandvik Coromant 5765348 Indexable Insert Drill 31mm

Product Description

The SANDVIK COROMANT 5765348 is an indexable insert drill from the CoroDrill 880 series, designed for high-productivity drilling operations in metalworking and machining applications. The drill accepts two indexable inserts and delivers a maximum drill depth of 3.80787 inches at a 3xD depth-to-diameter ratio. The 31mm (1.2984 inches) cutting diameter and Capto C5 modular connection make this tool compatible with CNC machining centers and turning centers equipped with matching Capto interfaces. The steel body provides rigidity during high-feed drilling, and the through-coolant capability supports chip evacuation and tool life at elevated cutting parameters. Licensed machinists and CNC programmers typically specify this tool for production drilling in steel, cast iron, and similar workpiece materials.

The 5765348 is suited for use on CNC machining centers and mill-turn platforms running production or job-shop drilling cycles in ferrous and non-ferrous materials. The modular Capto C5 connection allows rapid tool changes and precise repeatability in systems configured for quick-change tooling. At a 3xD depth-to-diameter ratio, this drill is best applied to through-holes and blind holes where depth does not exceed approximately 3.80 inches. The right-hand cutting direction is standard for conventional spindle rotation. This configuration is used in aerospace, automotive, and general engineering environments where consistent hole quality and insert interchangeability are priorities.

Key Features

• 31mm (1.2984 inches) maximum drill diameter for precision bore sizing
• 3xD depth-to-diameter ratio with a maximum drill depth of 3.80787 inches
• Capto C5 modular connection for repeatable, quick-change tool setup
• Through-coolant capable to support chip evacuation and extended insert life
• Accepts 2 indexable inserts compatible with CoroDrill 880 Cx-03 drill style
• Right-hand cutting direction; steel body construction

Compatibility

Designed for use with the CoroDrill 880 Cx-03 drill style and accepts inserts sized 3.50mm (0.1378 inches). Requires a Capto C5 modular connection interface on the machine spindle or toolholder. Compatible insert and adapter selection should be verified against the CoroDrill 880 series tooling system.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the control is in a safe state before mounting or removing the tool assembly. Verify Capto C5 interface cleanliness and seating torque per the machine tool manufacturer specifications before running. Activate through-coolant supply and confirm chip evacuation before engaging the drill at full feed parameters.
