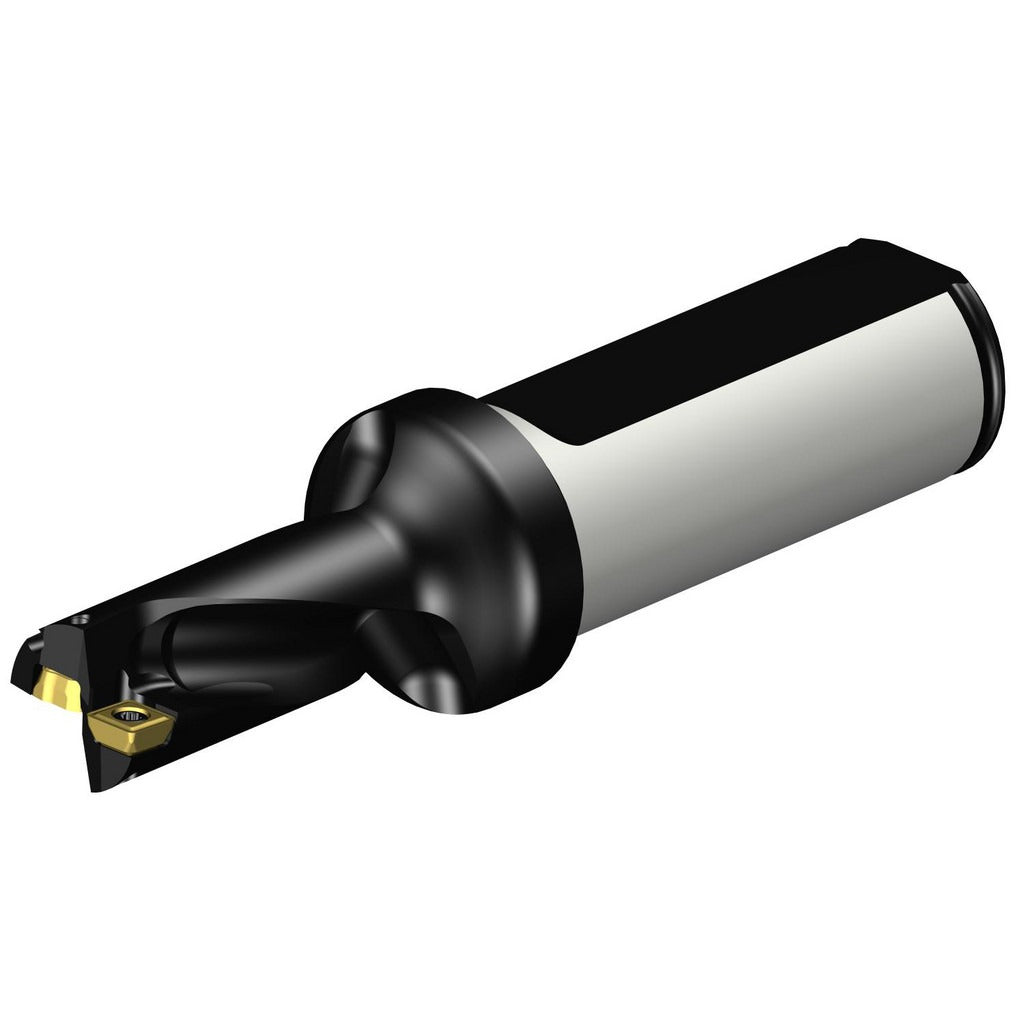

Sandvik Coromant 5765155 Indexable Insert Drill 14mm 2xd

Product Description

The SANDVIK COROMANT 5765155 is an indexable insert drill designed for precision hole-making in metal fabrication and machining applications. Built on the CoroDrill 880 platform, it accepts two indexable inserts and cuts in the right-hand direction. The drill body is constructed from steel and features a straight cylindrical shank measuring 20mm (0.7874 inches) in diameter. Maximum drill diameter is 14mm (0.5906 inches), and maximum drill depth is 30.8mm (1.2126 inches), representing a 2xD depth-to-diameter ratio. Coolant-through capability supports chip evacuation and tool life during demanding drilling operations.

This drill is suited for use in CNC machining centers and turning centers where indexable tooling is preferred for high-volume or production drilling. The straight cylindrical shank allows direct mounting in standard tool holders and chucks. The 2xD depth ratio makes it appropriate for through-holes and shallow blind holes in steel, cast iron, and similar workpiece materials. Machinists and tooling technicians working in job shops, production facilities, and maintenance environments will find this drill compatible with standard CoroDrill 880-series insert configurations.

Key Features

• 14mm maximum drill diameter (0.5906 inches) with 2xD depth-to-diameter ratio
• Maximum drill depth of 30.8mm (1.2126 inches)
• Coolant-through design aids chip removal and extends insert life
• Accepts two indexable inserts in the 880..L-02 drill style configuration
• Straight cylindrical shank, 20mm diameter (0.7874 inches), for standard tool holder compatibility
• Right-hand cutting direction; steel drill body construction

Compatibility

Compatible with 880..L-02 drill style inserts. Flute length is 39mm (1.5354 inches). Designed for use within the CoroDrill 880 indexable insert drill system.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the drill body or inserts. Secure the shank fully within the tool holder to the recommended grip length to prevent pull-out under cutting loads. Follow the machine tool manufacturer and insert manufacturer guidelines for feed rates and cutting speeds appropriate to the workpiece material.
