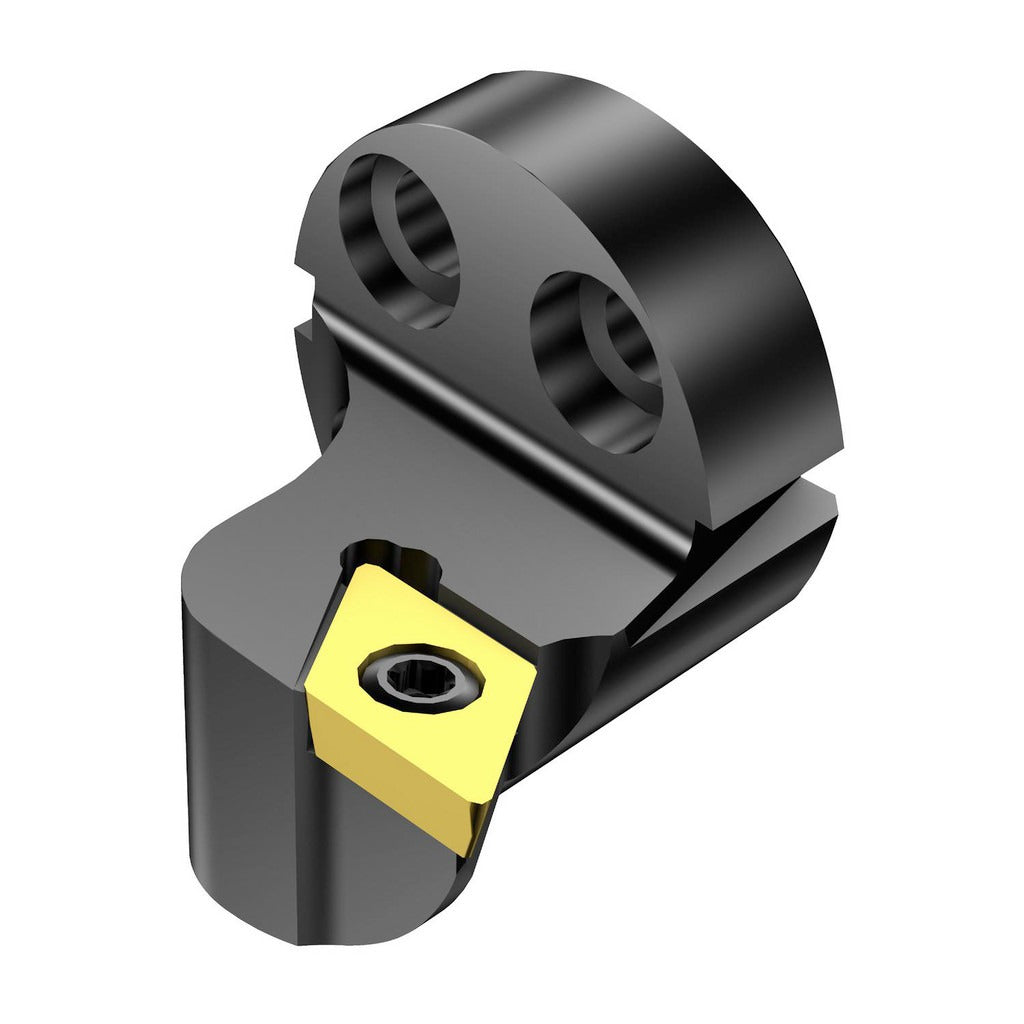

Sandvik Coromant 5764373 Modular Turning Profiling Head

Product Description

The SANDVIK COROMANT 5764373 is a modular turning profiling head designed for internal turning operations on CNC lathes and turning centers. Part of the CoroTurn 107 series, this right-hand head features a Size 32 system with a 32 mm head length projection and a 22 mm center-to-cutting-edge dimension. It accepts DCMT 11T308 inserts secured by a clamp and screw holding method. Through-coolant capability directs cutting fluid directly to the cutting zone, supporting longer tool life and chip control in deep bore and profiling applications. Licensed machinists and tooling technicians working in precision turning environments are the primary users of this head.

This profiling head is suited for internal turning, boring, and profiling in residential and industrial machining shops where modular tooling systems are standard. The head connection size is 40, making it compatible with the CoroTurn 107 modular coupling system. With a minimum hole diameter of 40 mm and a maximum hole depth of 32 mm, it fits typical small-to-mid-bore internal profiling applications. The 0-degree axial rake angle and -10-degree radial rake angle are factory-set for stable, predictable cutting performance with the specified insert geometry.

Key Features

• CoroTurn 107 series modular interface with Size 32 system and Head Connection Size 40
• Through-coolant design for improved chip evacuation and tool life in internal operations
• Accepts DCMT 11T308 inserts via clamp and screw holding for secure, repeatable seating
• 32 mm head length projection with 22 mm center-to-cutting-edge dimension
• Right-hand cutting direction for standard internal profiling setups
• -10-degree radial rake angle for controlled cutting action on the specified insert style

Compatibility

Designed for use with DCMT 11T308 inserts within the SANDVIK COROMANT CoroTurn 107 modular turning system at Head Connection Size 40.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician with the machine spindle fully stopped and all energy sources locked out per facility LOTO procedures. Ensure the modular coupling interface is clean and free of chips or debris before seating the head. Verify coolant line connections are secure before enabling through-coolant flow. Consult the machine tool and tooling system documentation for applicable torque requirements on the coupling interface.
