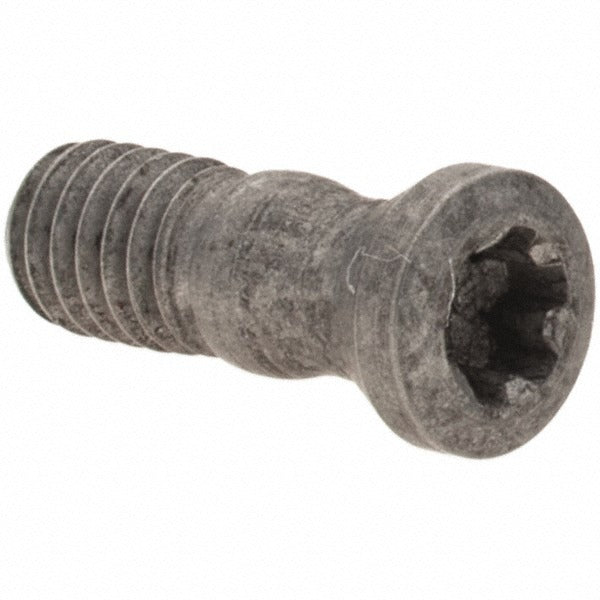

Sandvik Coromant 5763205 Cap Screw Torx Plus M4

Product Description

The SANDVIK COROMANT 5763205 is a cap screw designed for securing indexable inserts in toolholders used in CNC turning, milling, and boring applications. The screw features a Torx Plus drive and an M4 thread, providing reliable clamping force with reduced cam-out risk during insert changes. At 0.25 pounds per unit, this is a precision fastener intended for use by machinists and toolroom technicians who maintain indexable cutting tool assemblies. It conforms to Industry Standard Number 5513 036-01, making it a recognized replacement in standard toolholder configurations.

This cap screw is used wherever indexable insert toolholders require periodic insert changes or fastener replacement. It is suited for production machining environments, job shops, and maintenance applications where toolholder uptime matters. The M4 Torx Plus drive is a common standard in modern indexable toolholder systems, making this screw a routine service item for toolroom personnel. It is sold individually, with a minimum order quantity of 10 units per transaction.

Key Features

• M4 thread size for use with compatible indexable toolholder insert seats
• Torx Plus drive reduces cam-out during high-torque insert clamping
• Conforms to Industry Standard Number 5513 036-01
• Sold individually; minimum order quantity of 10 units
• Lightweight at 0.25 pounds per unit for easy handling during toolchange

Compatibility

Designed as a replacement cap screw for indexable insert toolholders requiring an M4 Torx Plus fastener per Industry Standard 5513 036-01. Specific compatible toolholder models were not listed in the available product data.

Installation Notes

Installation is typically performed by a machinist or toolroom technician during scheduled insert changes or fastener replacement. Always ensure the toolholder and machine spindle are fully stopped and the machine is locked out before accessing the insert seat. Use the correct Torx Plus driver bit to avoid stripping the drive recess. Do not substitute standard Torx bits, as Torx Plus geometry is not interchangeable with standard Torx profiles.
