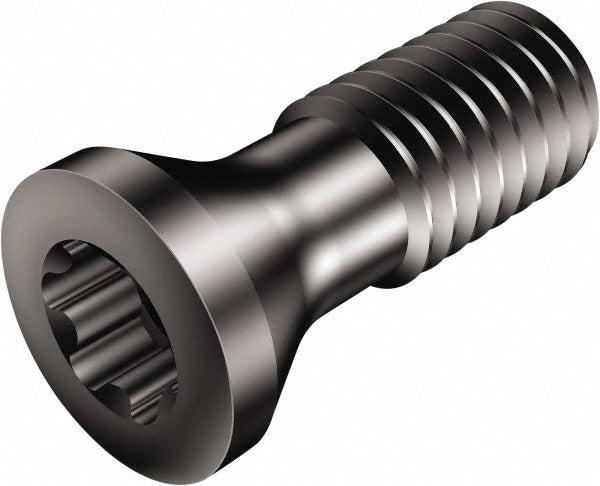

Sandvik Coromant 5763199 Cap Screw Torx Plus M4 Thread

Product Description

The SANDVIK COROMANT 5763199 is a Torx Plus drive cap screw designed for securing indexable inserts in cutting toolholders. This fastener features an M4 thread and is built to the ISO 5513 standard, making it a precise-fit replacement for indexable toolholder assemblies used in turning, milling, and boring operations. At 0.25 pounds per unit, the screw is compact and engineered to withstand the clamping forces generated during metal-cutting applications. Installation requires a Torx Plus driver, which provides better torque transfer and reduced cam-out compared to standard Torx. This screw is typically installed by machinists or tool crib technicians maintaining cutting tool assemblies on CNC and manual machine tools.

This cap screw is suited for use in production machining environments where indexable insert toolholders require periodic fastener replacement due to wear, stripping, or loss during insert changes. It is compatible with toolholders that accept M4 Torx Plus clamping screws per ISO 5513. Shops running high-volume turning or milling programs benefit from keeping replacement screws on hand to minimize downtime during insert indexing. The ISO 5513 020-06 industry standard number aids in cross-referencing with toolholder documentation.

Key Features

• M4 thread size for indexable insert clamping applications
• Torx Plus drive type for improved torque transfer and reduced cam-out
• Conforms to ISO industry standard number 5513 020-06
• Designed for toolholder hardware compatibility
• Compact and lightweight at 0.25 pounds per unit

Compatibility

Designed for use with indexable insert toolholders requiring M4 Torx Plus cap screws per ISO 5513 020-06. Hardware compatibility is listed as toolholder. Verify thread pitch and drive specification against your toolholder documentation before ordering.

Installation Notes

This screw is installed and removed by machinists or tool crib personnel using a calibrated Torx Plus driver of the correct tip size. Always power down and lock out the machine spindle before servicing toolholders. Do not substitute a standard Torx driver for a Torx Plus socket, as this can damage the screw head. Replace cap screws that show signs of thread damage, head rounding, or deformation to maintain proper insert clamping force.
