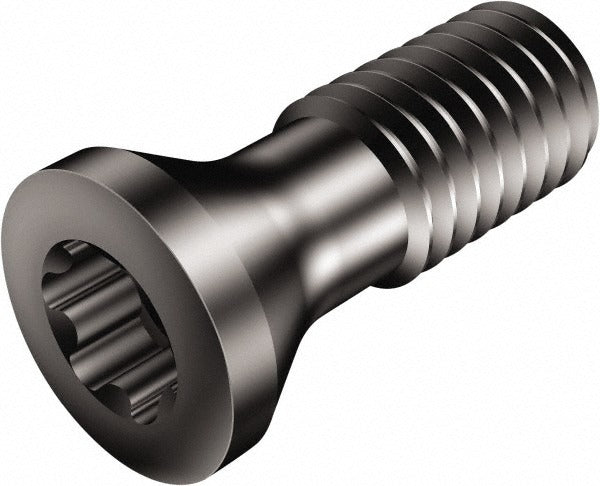

Sandvik Coromant 5763176 Cap Screw Torx Plus M2.5

Product Description

The SANDVIK COROMANT 5763176 is a cap screw designed for securing indexable inserts in toolholders used in CNC and manual machining operations. This Torx Plus drive screw features an M2.5 thread size, providing a precise fit for indexable tooling systems. The Torx Plus drive interface delivers higher torque transfer with reduced risk of cam-out compared to standard hex drives, maintaining consistent clamping force on cutting inserts. Installation is performed by machinists and toolroom technicians during insert changeover or toolholder setup. The screw is a direct replacement component for maintaining toolholder function and insert security in turning, milling, and boring applications.

This cap screw is suited for use in indexable toolholders across production machining environments, including both light-duty and heavy-duty cutting applications. It is commonly used during routine insert replacement cycles in shops running high-volume turning or milling operations. The M2.5 thread size is standard across a range of indexable toolholder platforms. Technicians should verify thread size and drive type compatibility with the specific toolholder before installation.

Key Features

• Torx Plus drive for higher torque transfer and reduced cam-out risk during insert clamping
• M2.5 thread size for use with compatible indexable toolholder systems
• Designed as a cap screw replacement component for indexable insert retention
• Conforms to Industry Standard Number 5513 020-56
• UNSPSC Code 31161500 for streamlined procurement classification

Compatibility

Designed for use with indexable toolholders requiring M2.5 Torx Plus cap screws. Hardware compatibility is listed as toolholder applications. Verify thread pitch and drive specification against your toolholder documentation before ordering.

Installation Notes

Installation is performed by machinists or toolroom technicians during insert changeover. Power down and lock out the machine before servicing any toolholder or replacing insert screws. Use a calibrated Torx Plus driver of the correct size to avoid stripping the drive interface. Do not substitute standard Torx drivers for Torx Plus screws, as the drive profiles differ.
