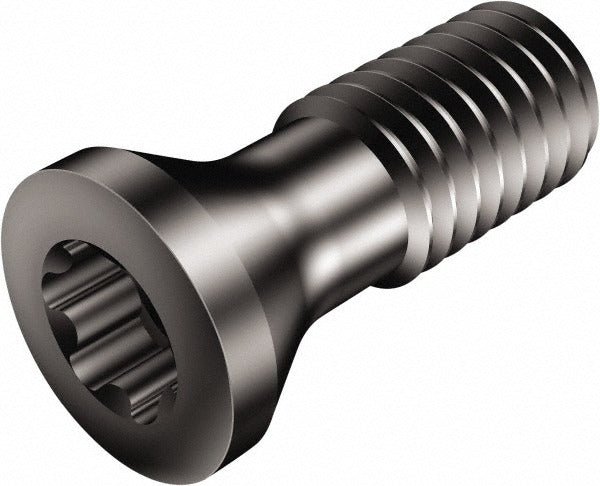

Sandvik Coromant 5763170 Cap Screw Torx Plus M4

Product Description

The SANDVIK COROMANT 5763170 is a Torx Plus drive cap screw designed to secure indexable inserts in toolholders used in CNC turning, milling, and boring applications. This screw features an M4 thread and is engineered to meet the dimensional and torque requirements set by ISO standard 5513 020-52. The Torx Plus drive geometry distributes drive force evenly across the bit contact area, reducing the risk of cam-out and screw head damage during insert changes. Machinists and toolroom technicians rely on this hardware to maintain precise insert seating and consistent cutting geometry across high-volume production runs.

This cap screw is used wherever SANDVIK COROMANT indexable toolholders call for an M4 Torx Plus clamping screw. Typical applications include insert replacement during scheduled maintenance on CNC lathes, machining centers, and boring bars. It is sold individually per package with a minimum order quantity of 10 units, making it suitable for stocking as a consumable shop supply. Keeping spare clamping screws on hand reduces downtime during insert indexing operations.

Key Features

• M4 thread size compatible with indexable toolholder clamping systems
• Torx Plus drive reduces cam-out risk and extends screw service life
• Meets industry standard 5513 020-52 dimensional requirements
• Compact form factor: 0.35 inches length, 0.25 inches width and height
• Lightweight at 0.25 pounds per package for easy handling and storage
• Sold as individual replacement hardware for toolholder maintenance

Compatibility

Designed for use with indexable toolholders requiring an M4 Torx Plus cap screw per ISO standard 5513 020-52. Verify toolholder documentation to confirm screw specification before ordering.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Always power down and lock out the machine before changing inserts or clamping screws. Use a calibrated Torx Plus bit of the correct size to avoid rounding the drive recess. Follow the toolholder manufacturer's recommended torque specification for the M4 screw to ensure proper insert clamping force without overloading the screw thread.
