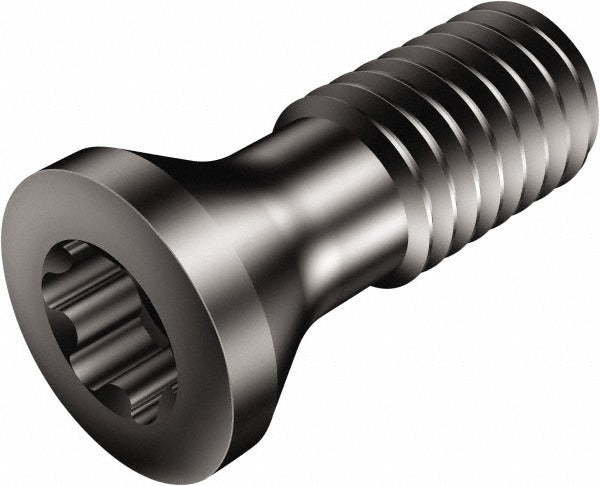

Sandvik Coromant 5763152 Cap Screw Torx Plus M2.5

Product Description

The SANDVIK COROMANT 5763152 is a cap screw designed for securing indexable inserts in toolholders used in machining and cutting operations. It features a Torx Plus drive type and an M2.5 thread size, providing reliable clamping force for insert retention during turning, milling, or boring applications. The Torx Plus socket head minimizes cam-out and allows precise torque application, which is critical when seating indexable carbide inserts. This fastener is a direct replacement component for toolholder assemblies and is sold individually per package. It is intended for installation by machinists and tool crib technicians maintaining CNC or manual machine tool setups.

This cap screw is used in metalworking environments where indexable insert toolholders require fastener replacement due to wear, stripping, or loss. It is suited for production machining shops, job shops, and maintenance applications across a range of toolholder styles that accept M2.5 Torx Plus insert screws. The screw conforms to Industry Standard Number 5513 020-36, making it a recognized replacement in compatible toolholder systems. It is packaged as a single unit with a minimum order quantity of 10 units per order.

Key Features

• Torx Plus drive type reduces cam-out during insert seating and torque application
• M2.5 thread size matches standard indexable insert screw specifications
• Conforms to Industry Standard Number 5513 020-36 for broad toolholder compatibility
• Cap screw head style provides positive clamping and secure insert retention
• Designed as a direct replacement fastener for worn or damaged insert screws in toolholders

Compatibility

Compatible with toolholders requiring M2.5 Torx Plus cap screws for indexable insert clamping. Conforms to Industry Standard Number 5513 020-36. Verify toolholder documentation for correct screw specification before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tool crib technician with the machine powered down and the spindle fully stopped. Use a calibrated Torx Plus key or driver of the correct size to avoid damaging the screw head socket. Do not substitute a standard Torx driver for a Torx Plus fastener, as this can cause socket damage. Follow the toolholder manufacturer's recommended torque procedure for insert screw installation.
