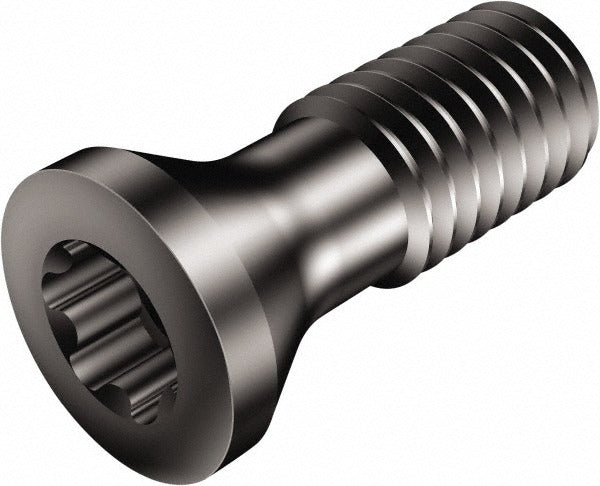

Sandvik Coromant 5763148 Cap Screw Torx Plus M2.5

Product Description

The SANDVIK COROMANT 5763148 is a Torx Plus cap screw designed for securing indexable inserts in toolholders used in precision metal-cutting applications. This small-format fastener features an M2.5 thread size and a Torx Plus drive interface, which provides higher torque transfer and reduced risk of drive recess damage compared to standard hex or Torx designs. It is sold individually per package with a minimum order quantity of 10 units. Machinists and toolroom technicians working with indexable tooling systems rely on this type of screw to maintain proper insert seating and clamping force during turning, milling, and boring operations.

This cap screw is intended for use in indexable toolholder assemblies across CNC and manual machining environments. It is a direct replacement or service part for toolholders that specify an M2.5 Torx Plus insert-clamping screw conforming to ISO standard 5513 020-34. Typical applications include production turning, facing, and boring operations where insert changeover frequency is high and fastener integrity is critical to dimensional repeatability.

Key Features

• M2.5 thread size engineered for indexable insert clamping applications
• Torx Plus drive type delivers higher torque transfer and longer drive-recess service life
• Conforms to industry standard number 5513 020-34
• Compatible with toolholder hardware requiring M2.5 Torx Plus cap screws
• Compact form factor: approximately 0.31 inches in length and 0.25 inches in width

Compatibility

Designed for use with toolholders requiring an M2.5 Torx Plus cap screw per industry standard 5513 020-34. Refer to your toolholder documentation to confirm correct screw specification before ordering.

Installation Notes

Installation and replacement of indexable insert screws should be performed by a qualified machinist or toolroom technician. Always power down and lock out the machine spindle before servicing any toolholder or insert assembly. Use a calibrated Torx Plus driver of the correct size to avoid stripping the drive recess. Do not exceed the torque specification listed in the toolholder manufacturer documentation for this screw size.
