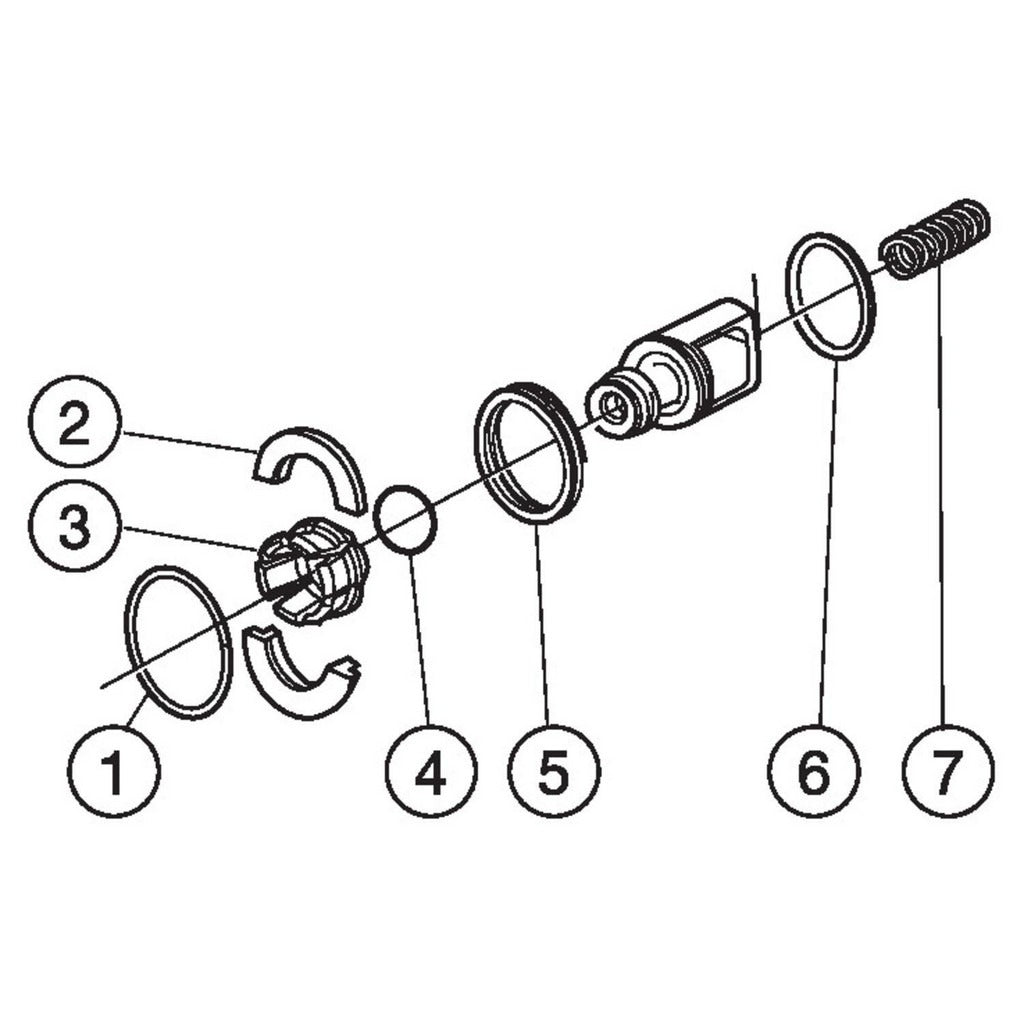

Sandvik Coromant 5762959 Lathe Chuck Draw Bar Set

Product Description

The SANDVIK COROMANT 5762959 is a lathe chuck draw bar set designed to secure chuck assemblies on lathe spindles during turning operations. The draw bar transmits clamping force from the spindle drawbar mechanism to the chuck body, maintaining workpiece retention under cutting loads. Weighing 0.31 pounds, this is a compact, purpose-built accessory intended for machinists and tool-room technicians working with compatible SANDVIK COROMANT lathe tooling systems. It ships as a complete set in a package quantity of one.

This draw bar set is suited for lathe setups where secure chuck attachment is required during precision turning, facing, or boring work. It is typically installed during chuck changes or spindle tooling swaps in both job-shop and production environments. The accessory type is classified as a draw bolt assembly, making it relevant wherever chuck-to-spindle clamping hardware must be replaced or supplemented as part of routine tooling maintenance.

Key Features

• Designed as a draw bolt accessory for lathe chuck clamping applications
• Compact and lightweight at 0.31 pounds for easy handling during chuck changes
• Sold as a complete set with a package quantity of one
• UNSPSC Code 31201609 for procurement and catalog classification

Compatibility

Designed as an OEM-style replacement draw bar set for compatible SANDVIK COROMANT lathe chuck systems. No specific model numbers or system families were provided in the product data; confirm fitment against your spindle and chuck assembly specifications before ordering.

Installation Notes

Installation should be performed by a qualified machinist or tool-room technician. Power down and lock out the lathe spindle drive before removing or installing any chuck or draw bar hardware. Verify thread engagement and clamping torque requirements against the machine and chuck manufacturer documentation before operating the lathe under load. Do not operate the spindle with an improperly seated or under-torqued draw bar assembly.
