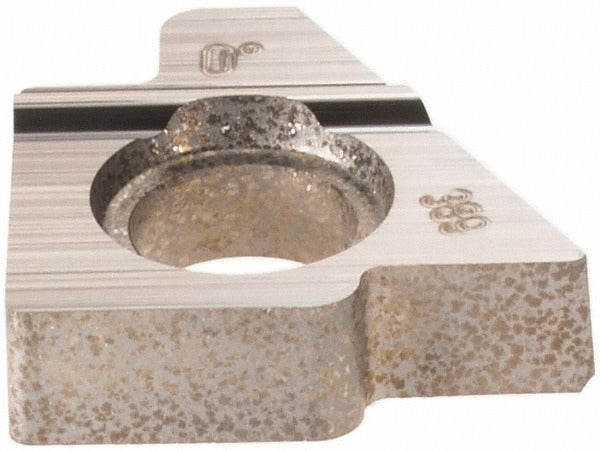

Sandvik Coromant 5762685 Toolholder Shim Indexable

Product Description

The SANDVIK COROMANT 5762685 is a replacement shim designed for use with indexable toolholders. Shims in indexable tooling systems provide the precise seating surface that positions insert pockets at the correct height and angle, protecting the toolholder pocket from direct cutting forces and wear. This shim corresponds to style 5322 389 and is sold as a single piece per package. It is installed and replaced by machinists and tooling technicians as part of routine indexable tooling maintenance.

This shim is used in metalworking and machining environments where indexable insert toolholders are employed on lathes, turning centers, and similar machine tool setups. Replacing worn or damaged shims is a standard maintenance step that extends the service life of the toolholder body itself. The 5322 389 shim style is specific to the SANDVIK COROMANT toolholder line and is ordered as a single unit per transaction.

Key Features

• Shim style 5322 389, matched to specific SANDVIK COROMANT indexable toolholder pocket geometry
• Single shim included per package for targeted replacement as needed
• Protects toolholder pocket from direct insert contact and premature wear
• Lightweight component at 0.25 pounds per package
• Sold individually, allowing precise inventory control for maintenance programs

Compatibility

Designed for use with SANDVIK COROMANT indexable toolholders requiring shim style 5322 389. Catalog number 5322 389-10 is associated with this shim. Verify shim style against the toolholder pocket specification before ordering.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Before replacing the shim, ensure the machine is fully powered down and the spindle is locked out per facility lockout/tagout procedures. The seating surfaces of the toolholder pocket and the new shim should be cleaned and inspected for debris or damage before installation. Torque values for clamping hardware should be sourced from the toolholder manufacturer documentation.
