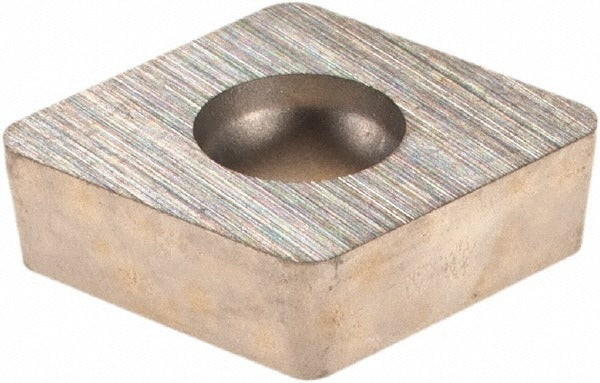

Sandvik Coromant 5762472 Indexable Shim 3/8 in Positive Rake

Product Description

The SANDVIK COROMANT 5762472 is an indexable toolholder shim designed to seat and support indexable inserts in compatible turning and milling toolholders. This shim measures 0.375 inches inscribed circle and 0.125 inches thick, conforming to the 5322 236 shim style. It is engineered for positive rake applications and accepts both left-hand and right-hand cutting directions. Machinists and tool crib technicians install this component as a precise seating surface between the insert and the toolholder pocket, protecting the pocket from wear and maintaining consistent insert positioning across tool changes.

This shim is suited for use in metal-cutting environments where indexable insert toolholders require a replaceable seating element. It fits toolholders configured for 3/8-inch inscribed circle inserts with a positive rake geometry. Typical applications include CNC turning centers, manual lathes, and milling setups where tool pocket protection and repeatable insert seating are required. The shim accommodates both left-hand and right-hand cutting directions, making it a versatile stock item for shops running mixed-direction tooling setups.

Key Features

• 5322 236 shim style for direct OEM-style fit in compatible toolholder pockets
• 3/8 inch (0.375 inches) inscribed circle sizing matches standard insert families
• 1/8 inch (0.125 inches) thickness provides consistent insert seating height
• Positive rake geometry compatible
• Accepts left-hand and right-hand cutting directions
• Protects toolholder pocket from insert-induced wear during indexing cycles

Compatibility

Designed as an OEM-style replacement shim for indexable toolholders requiring the 5322 236 shim style with a 3/8-inch inscribed circle insert seat. Manufacturers catalog number 5322 236-04 may be used for cross-reference verification with compatible toolholder documentation.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Before replacing a shim, ensure the machine spindle is fully stopped, the toolholder is removed from the turret or holder block, and the pocket is clean and free of chips or debris. Inspect the toolholder pocket seating surface for damage before installing the new shim. Follow the toolholder manufacturer torque specifications for the shim and insert clamping screws as listed in the applicable toolholder documentation.
