Sandvik Coromant 5760196 Hydraulic Chuck Sleeve

Product Description

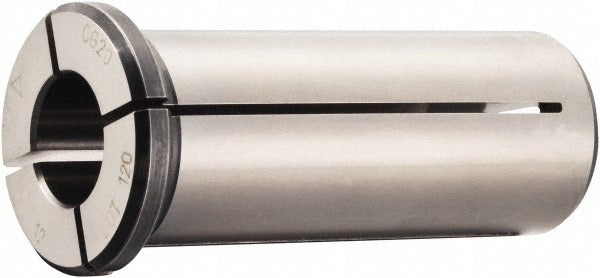

The SANDVIK COROMANT 5760196 is a hydraulic chuck sleeve designed to adapt tool shanks within hydraulic chuck holders used in precision CNC machining operations. This sleeve features a 10 mm inside diameter, a 12 mm outside diameter, and a 16 mm head diameter, with a length under head of 1.5748 inches (40 mm). Constructed from steel, it supports coolant-through operation at up to 80 psi, allowing cutting fluid to reach the tool tip directly. It is installed by machining professionals and toolroom technicians working with hydraulic toolholding systems where precise tool runout and clamping force are critical.

This sleeve is suited for use in hydraulic chuck holders configured for 10 mm shank tools across both roughing and finishing applications in ferrous and non-ferrous materials. Typical installations occur on CNC machining centers, turning centers, and multi-axis machines where through-coolant delivery improves chip evacuation and extends tool life. The compact head geometry at 16 mm supports use in tight-clearance setups where larger toolholding assemblies would interfere with the workpiece or fixture.

Key Features

• 10 mm inside diameter for precise shank fit within hydraulic chuck holders
• 12 mm outside diameter compatible with corresponding hydraulic chuck bore sizes
• 16 mm head diameter for positive axial seating and retention
• Coolant-through design supports directed cutting fluid delivery to the tool tip
• Rated for coolant pressure up to 80 psi
• Steel construction provides durability under repeated clamping cycles

Compatibility

Designed as an OEM-style sleeve for use in hydraulic chuck toolholding systems accepting a 10 mm shank bore with a 12 mm sleeve outside diameter and 16 mm head seat.

Installation Notes

Installation is performed by qualified toolroom or CNC setup personnel. Ensure the hydraulic chuck holder is fully depressurized and the machine spindle is locked out before inserting or removing the sleeve. Verify the sleeve bore, outside diameter, and head seat dimensions match the holder specification before assembly. Do not exceed the rated coolant pressure of the chuck system when operating with through-coolant enabled.
