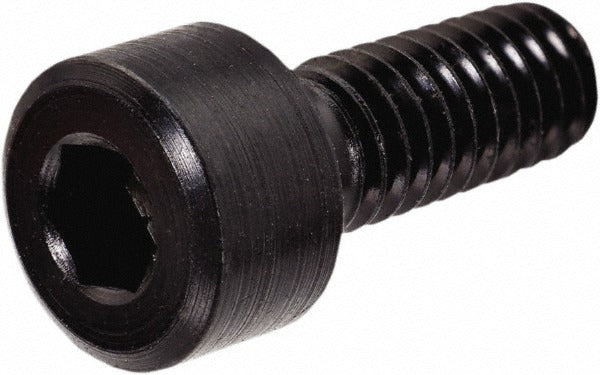

Sandvik Coromant 5758500 Indexable Insert Screw

Product Description

The SANDVIK COROMANT 5758500 is a replacement screw designed for indexable insert toolholders. This small-format fastener secures cutting inserts in place during machining operations, maintaining precise insert positioning under cutting loads. It is a critical consumable component in turning, milling, and boring toolholder assemblies. The screw measures 0.59 inches in length and 0.28 inches in both height and width, and weighs approximately 0.0044 pounds. Machinists and toolroom technicians install and replace these screws as part of routine insert changes and toolholder maintenance.

This screw is intended for use with the 3212 010 toolholder style, making it applicable to CNC turning centers, machining centers, and manual lathes equipped with compatible SANDVIK COROMANT indexable toolholder systems. Insert screws of this type are replaced whenever threads are damaged, the screw head shows wear from a torx or hex key, or during a full toolholder rebuild. Keeping spare quantities on hand minimizes downtime during insert changes.

Key Features

• Designed to secure indexable cutting inserts in compatible toolholders
• Compact dimensions: 0.59 inches long, 0.28 inches wide, 0.28 inches high
• Lightweight at 0.0044 pounds for minimal impact on toolholder balance
• Compatible with toolholder style 3212 010
• Sold individually; minimum order quantity is 10 units

Compatibility

Designed for use with SANDVIK COROMANT toolholder style 3212 010. Verify screw thread specification and drive type against your specific toolholder before ordering.

Installation Notes

Insert screw replacement is performed by machinists and toolroom technicians. Power down and lock out the machine spindle before servicing any toolholder assembly. Use the correct torx or hex key driver specified for the toolholder to avoid rounding the screw head. Do not overtighten or substitute screws from other manufacturers, as thread pitch and head geometry are toolholder-specific.
