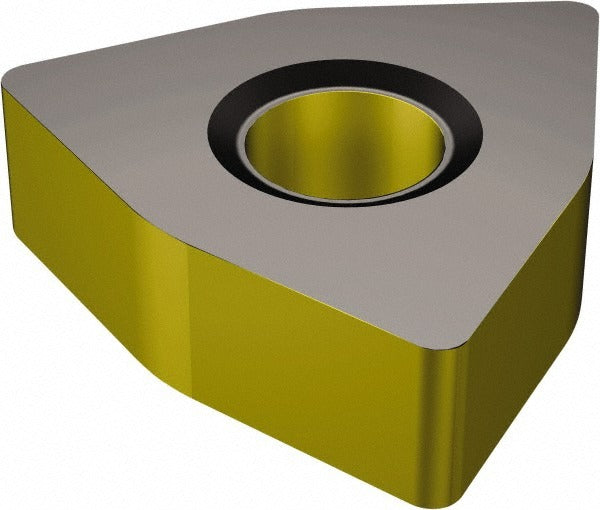

Sandvik Coromant 5756292 Turning Insert WNMA432KR 3210

Product Description

The SANDVIK COROMANT 5756292 is a solid carbide turning insert from the T-Max P series, designed for single-point turning operations on cast iron workpieces. It carries a three-layer CVD coating of TiCN, Al2O3, and TiN, which delivers high wear resistance with moderate toughness across roughing and medium machining applications. The insert follows ANSI code WNMA432 and ISO code WNMA080402, features an 80-degree trigon shape, a neutral hand orientation, and a negative side clearance with a tolerance code of M. With six available cutting edges and compatibility with both clamp and pin holding methods, this insert offers extended tool life per edge on demanding cast iron cuts.

This insert is suited for lathe and turning center operations targeting cast iron materials in both roughing and medium machining passes. The KR chip breaker geometry is optimized for cast iron grade K applications, making it a direct fit for production environments where consistent chip control and wear resistance are priorities. The T-Max P series is a well-established platform used in horizontal and vertical turning setups across job shop and production machining environments. Licensed machinists and CNC turning specialists are the primary installers and users of this insert.

Key Features

• Three-layer CVD coating: TiCN, Al2O3, and TiN for high wear resistance on cast iron
• 80-degree trigon insert shape (WNMA) with six usable cutting edges
• KR chip breaker geometry rated for roughing and medium machining of cast iron
• Neutral hand orientation with negative side clearance, tolerance code M
• Compatible with clamp and pin insert holding methods
• Maximum depth of cut of 0.3106 inches (7.89 mm) for aggressive material removal

Compatibility

Designed as an OEM-grade replacement or direct-fit insert for SANDVIK COROMANT T-Max P series turning toolholders accepting WNMA-style inserts with ANSI size code 432 and ISO size code 080402. Verify toolholder pocket geometry and insert holding method before installation.

Installation Notes

This insert is installed by qualified machinists or CNC turning technicians. Always power down the machine and follow lockout/tagout procedures before changing inserts. Seat the insert firmly in the toolholder pocket and confirm the clamp or pin holding method is fully engaged before resuming operation. Inspect the pocket and seating surface for chips or wear before installing a new edge or replacement insert.
