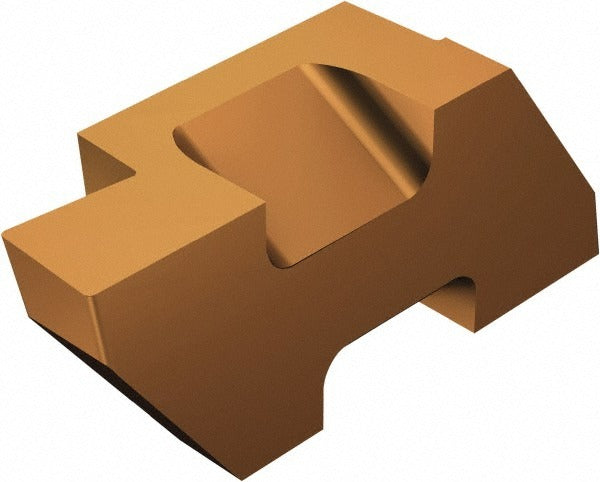

Sandvik Coromant 5753001 Grooving Insert TLG2 1125 Solid Carbide

Product Description

The SANDVIK COROMANT 5753001 is a solid carbide grooving insert designed for precision external grooving operations on CNC lathes and turning centers. Manufactured to ISO code TLG-2058R 1125, it carries a dual PVD coating of TiCrAlN and TiAlN for extended wear resistance and thermal stability at the cutting edge. The insert delivers a cutting width of 1.47 mm (0.0580 inches) and a maximum depth of cut of 1.27 mm (0.0500 inches), making it well suited for fine grooving work where dimensional accuracy is critical. A neutral rake geometry with a 10-degree rake angle and a 0.19 mm corner radius support controlled chip formation. This insert is installed by machinists and CNC tooling technicians in precision machining environments.

This insert is intended for use in the Top Lok series toolholding system, a right-hand orientation setup used on CNC turning equipment in both job-shop and production environments. The insert size is 2, with a cutting height of 5.56 mm (0.2190 inches) and an overall length of 0.3441 inches. It is suited for tight-tolerance grooving on ferrous and non-ferrous workpieces where a repeatable, secure insert seat is required. The multi-use designation indicates the insert supports more than one cutting edge application within its geometry range.

Key Features

• Solid carbide substrate with PVD-applied TiCrAlN and TiAlN dual coating for wear and heat resistance
• 1.47 mm cutting width with a maximum depth of cut up to 1.27 mm
• Neutral rake geometry with a 10-degree rake angle for stable chip control
• 0.19 mm corner radius for fine edge definition in precision grooving
• Right-hand orientation, insert size 2, fits Top Lok series toolholders
• Multi-use insert supporting a depth-of-cut range of 0.00 to 2.00 mm

Compatibility

Designed for use with Top Lok series toolholding systems accepting a size 2 insert seat. Compatible toolholder and insert seat selection should be verified against the Top Lok system specifications using ISO code TLG-2058R 1125 as the reference designation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician with the machine powered off and all axes at a safe position. The insert seat should be cleaned and inspected before seating the insert to ensure full contact and accurate tool height. Use the appropriate Top Lok clamping hardware as specified for size 2 inserts. Do not exceed the stated maximum depth of cut of 1.27 mm per pass.
