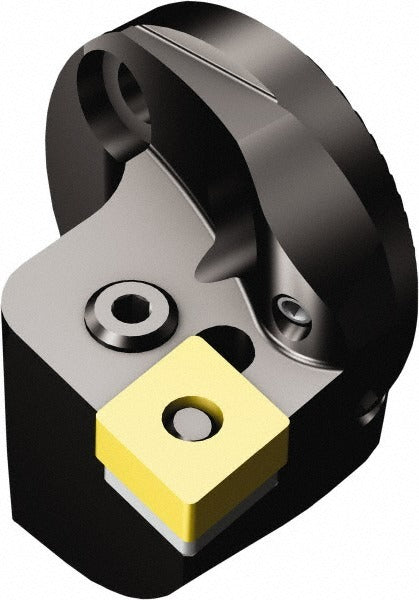

Sandvik Coromant 5749952 Turning Profiling Head Size 40

Product Description

The SANDVIK COROMANT 5749952 is a modular turning profiling head designed for internal left-hand turning operations on CNC lathes and turning centers. Part of the T-Max P series, this head mounts to modular tooling systems via a size 32 head connection and accepts CNMG 120408 inserts secured by a lever clamping mechanism. The neck diameter measures 40 mm (1.5748 inches) and the head length projection is 35 mm (1.378 inches). Through-coolant capability directs fluid directly to the cutting zone, supporting tool life and chip control in demanding internal profiling applications. Installed by machinists and tooling specialists in production turning environments.

This profiling head is suited for internal turning and profiling of bores and contours in ferrous and non-ferrous materials on CNC turning equipment. The left-hand cutting direction and 27 mm (1.063 inches) center-to-cutting-edge dimension make it appropriate for specific bore geometry requirements. The minimum hole diameter for this head is 50 mm (1.9685 inches), and the maximum hole depth matches the head length projection at 35 mm (1.378 inches). It is intended for use in precision production shops, job shops, and automated turning cells where modular tooling systems are in use.

Key Features

• T-Max P series modular system with size 32 head connection for quick-change compatibility
• Left-hand cutting direction for internal profiling operations
• Lever insert clamping for secure, repeatable CNMG 120408 insert seating
• Through-coolant design channels fluid directly to the insert for thermal management and chip evacuation
• Axial rake angle of -6 degrees and radial rake angle of -10 degrees for controlled cutting geometry
• Minimum hole diameter of 50 mm (1.9685 inches) suits medium-to-large bore internal work

Compatibility

Compatible with CNMG 120408 inserts. Designed for use with SANDVIK COROMANT T-Max P modular tooling systems with a size 32 head connection interface and a system size of 40.
