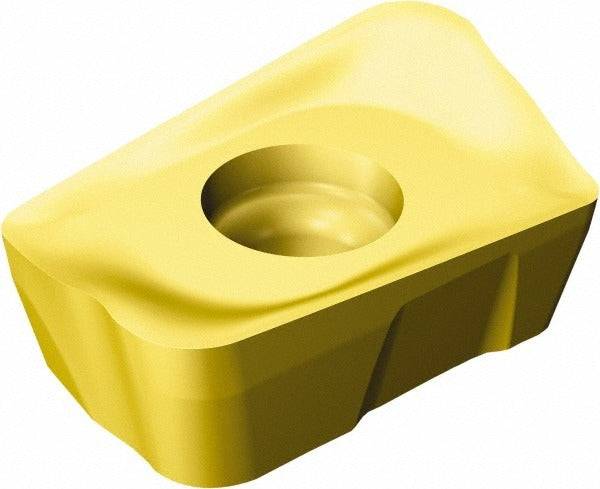

Sandvik Coromant 5745690 Milling Insert Grade 2040 R390

Product Description

The SANDVIK COROMANT 5745690 is a solid carbide milling insert in grade 2040, designed for shoulder milling operations in the R390 series tooling system. It features a parallelogram shape with a 90-degree included angle, positive 5-degree rake geometry, and a corner-rounded cutting edge style. The insert measures 11.00 mm in inscribed circle diameter and 6.33 mm thick, with a 0.80 mm corner radius. A CVD-applied multilayer coating of TiCrN, Al2O3, and TiN provides thermal and wear resistance across demanding cutting applications. Licensed machinists and toolroom technicians are the primary installers and operators.

This insert is suited for face and shoulder milling of steel, stainless steel, superalloys, and titanium in both production and job-shop environments. It carries material grade designations P45, M40, and S30, making it appropriate for a broad range of workpiece hardness and toughness levels. The ML chip breaker geometry is optimized for light to medium depth cuts, with a maximum depth of cut rated at 16.00 mm. It mounts via screw holding in compatible R390 and M-40 cutter bodies.

Key Features

• CVD multilayer coating: TiCrN, Al2O3, TiN for high-temperature and abrasion resistance
• Positive rake angle of 5 degrees reduces cutting forces on difficult materials
• ML chip breaker optimized for light-to-medium depths of cut up to 16.00 mm
• Single-sided, right-hand insert with 2 cutting edges per insert
• Corner-rounded cutting edge style extends tool life at entry and exit
• Conforms to ANSI and ISO standards; catalog designation R390-18 06 08H-ML 2040

Compatibility

Compatible with R390 and M-40 series milling cutter bodies. Insert size code 180608 per ANSI and ISO standards (ANSI/ISO code: R390-18 06 08H-ML 2040). Screw-held mounting method required.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Ensure the cutter body is fully removed from the spindle and the machine is locked out before seating or replacing inserts. Use the appropriate Torx or hex key to torque the clamping screw to the cutter body manufacturer's specified value. Inspect the insert pocket and screw thread for wear or debris before fitting a new insert.
