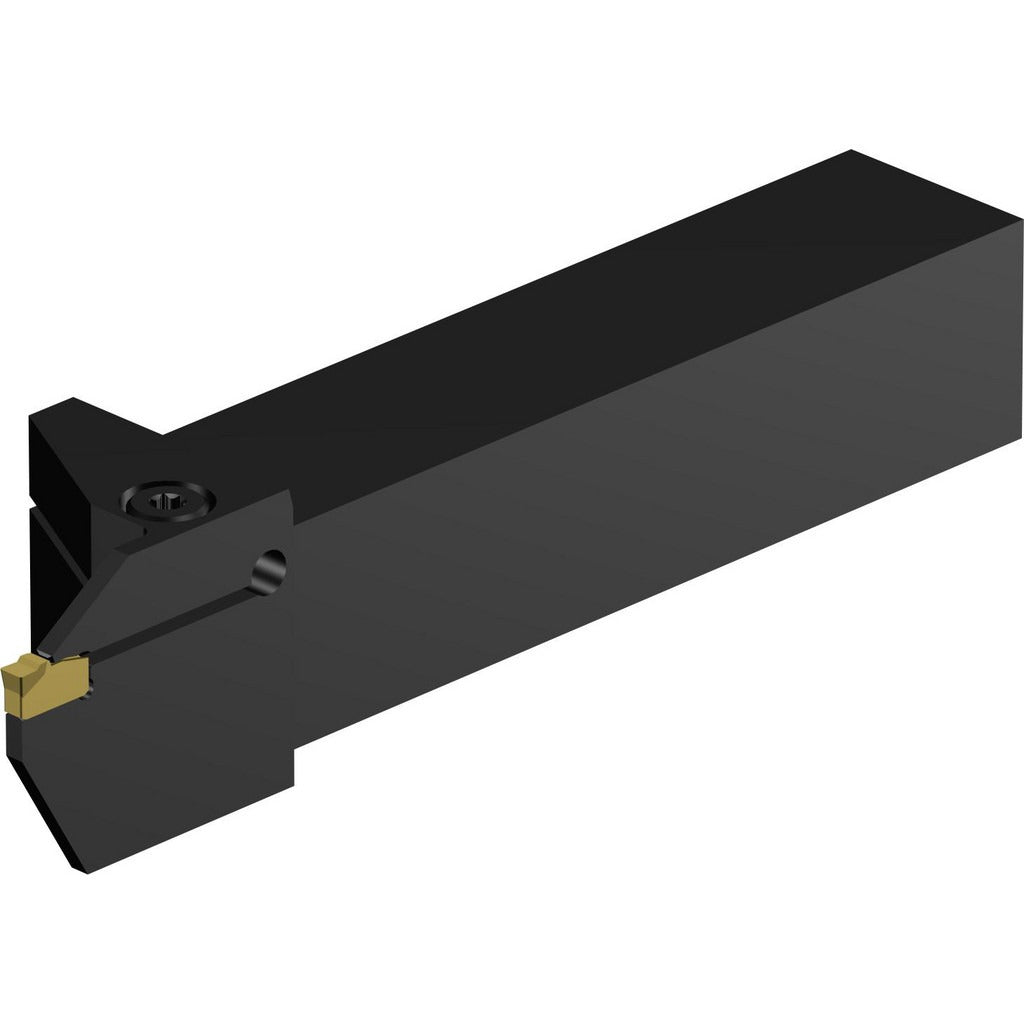

Sandvik Coromant 5740956 Grooving Cutoff Toolholder RF151.23

Product Description

The SANDVIK COROMANT 5740956 is an indexable grooving and cutoff toolholder in the T-Max Q-Cut series, designed for external grooving operations on CNC lathes and turning centers. It accepts N151.2-300-5E inserts secured by a clamp-style holding method, providing rigid and repeatable insert location. The toolholder supports a groove width range of 3 inches to 4.15 mm (0.1181 to 0.1634 inches) and delivers a maximum depth of cut of 19.99 mm (0.787 inches). The 1 x 1 inch shank fits standard square-shank tool blocks and quick-change turrets. This right-hand holder is suited to production turning environments where consistent groove geometry and reliable insert indexing are priorities.

This toolholder is intended for external grooving and parting-off applications in general metalcutting. It is appropriate for use in job shop and production turning environments on conventional or CNC lathes. The T-Max Q-Cut series is engineered for stable cutting performance during grooving and cutoff passes. The right-hand designation means cutting action occurs from right to left when viewed from the operator side of the machine. Machinists and CNC turning technicians are the primary installers of this toolholder.

Key Features

• Groove width range: 3.00 mm to 4.15 mm (0.1181 to 0.1634 inches) for versatile groove sizing
• Maximum depth of cut: 19.99 mm (0.787 inches) for deep grooving and cutoff work
• Clamp-style insert holding for rigid, repeatable insert seating
• Compatible with N151.2-300-5E inserts only — no substitution required at setup
• 1 x 1 inch square shank fits standard tool blocks and quick-change turrets
• Right-hand cutting orientation for standard OD turning setups
• Part of the T-Max Q-Cut series, engineered for external grooving and parting operations

Compatibility

Designed for use with N151.2-300-5E inserts. Toolholder style RF151.23-16-30 is part of the SANDVIK COROMANT T-Max Q-Cut series for external grooving and cutoff applications. No other insert compatibility is stated by the manufacturer for this holder.

Installation Notes

Installation is performed by a qualified machinist or CNC turning technician. Before mounting, power down and lock out the machine spindle per LOTO procedures. Seat the shank fully into the tool block or turret station and torque the clamping screws to the machine or tooling manufacturer specifications before engaging the insert. Verify insert seating and clamp engagement before taking any cut, and confirm groove width and depth settings with a test pass on scrap material.
